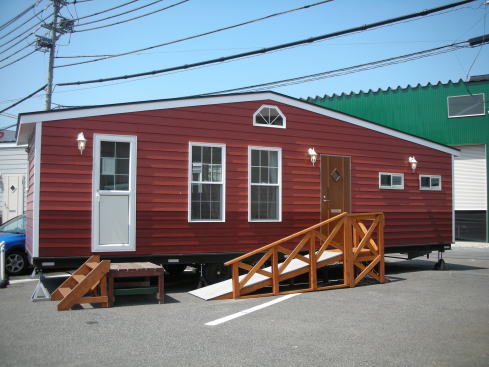

Land Bridge

"A bridge which connects people"
This model was developed after an occuration of earthquake disaster. It is a design for preparation for disasters which may occur someday.

1) 3.2 meter-wide body
2) Making a living space in which people can stay with feeling secure
3) Being energy-saving by high airtight & insulation, such as 100mm-thick heat insulation and high airtight window sashes
4) Withstanding Japanese severe climate, such as heavy snow and coldness
5) Toilet with washlet (bidet) function and heated seat
6) Two doorways with locks

Last Updated: July 1, 2017

Interior colors
Features
Floor plan
Equipment colors
Equipment and specifications

We learned importance of energy-saving and privacy from disasters and we designed this model.

Cumberland's enthusiasm for "disaster preparedness and care"

The reasons for Land Bridge
Our hope we learned through helping with disaster revival for over 15 years

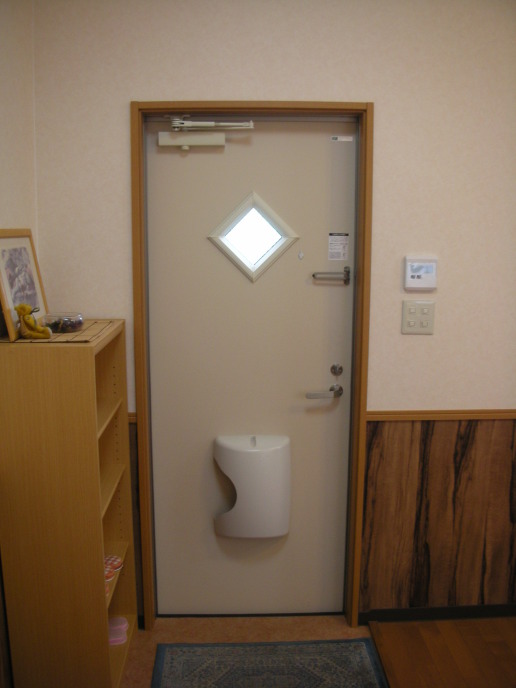

The front door has a door lock and a indoor bar door guard. It also has a mailbox.
The bathroom and living room can be separated by locking the door. (So that the bathroom can be opened to people being in trouble due to disasters or emergency situations.)

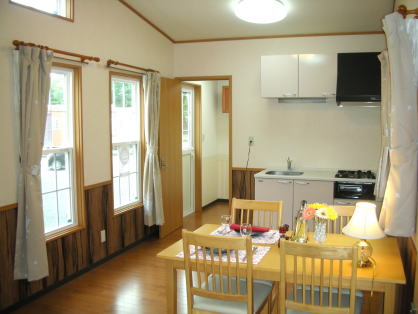

Spacious living room and bedroom

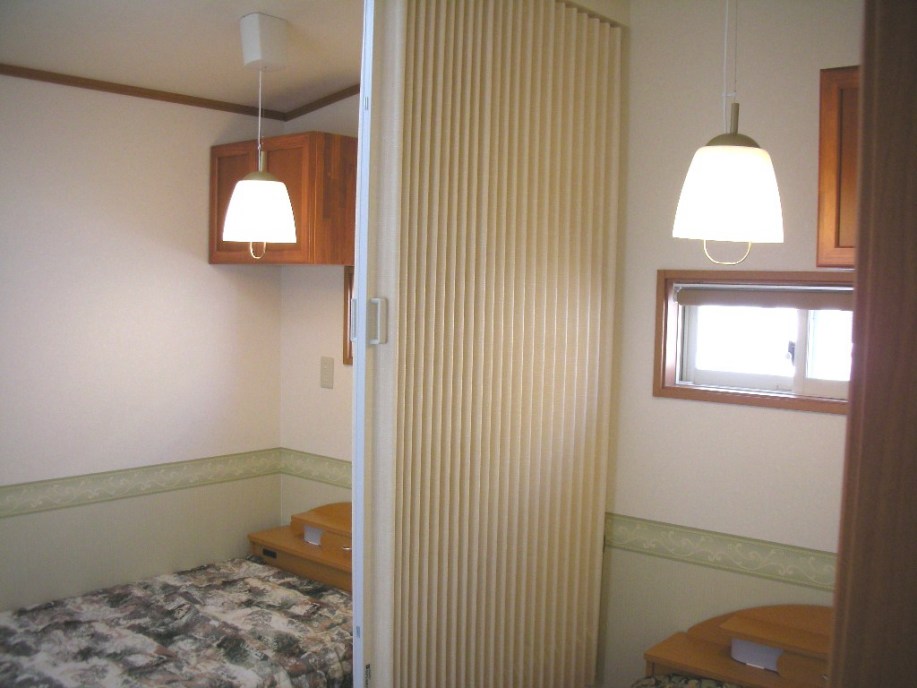

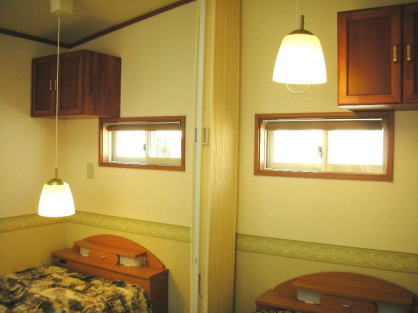

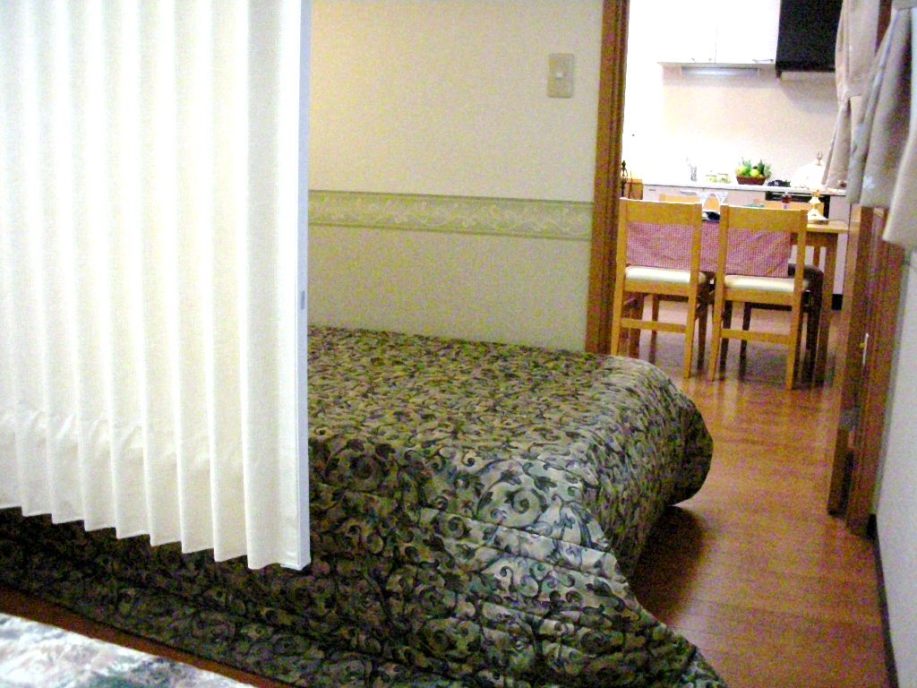

The bedroom can be partitioned with an accordion curtain (option). You can read a book calmly.
The bathroom is one step lower than main floor, so it's easy to clean.
The toilet has a heated seat and washlet (bidet) function.

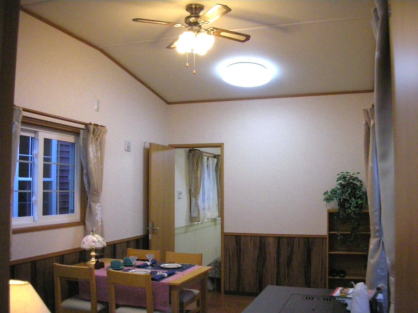

A ceiling fan and LED ceiling lights provide sufficient brightness and an atmosphere in the rooms.

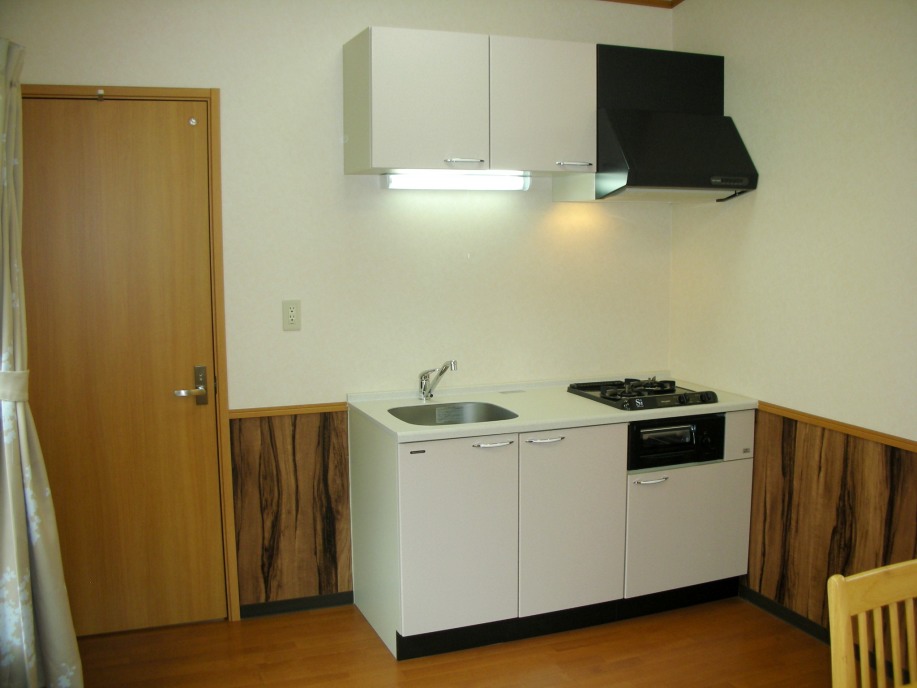

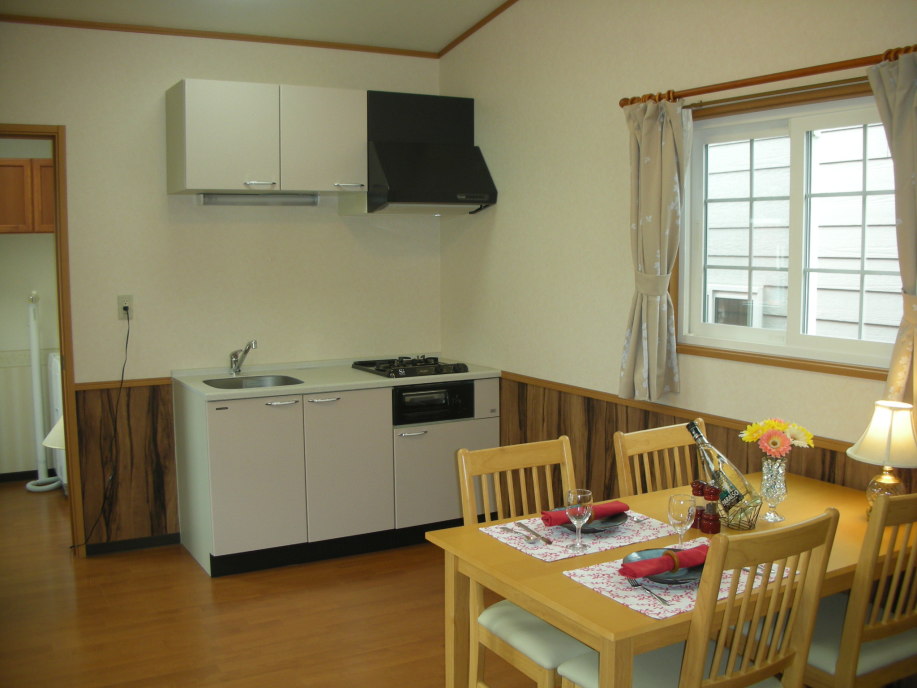

150cm-wide kitchen with 2-burner gas range and fish grill

Interior colors

Standard colors					Option	Special option

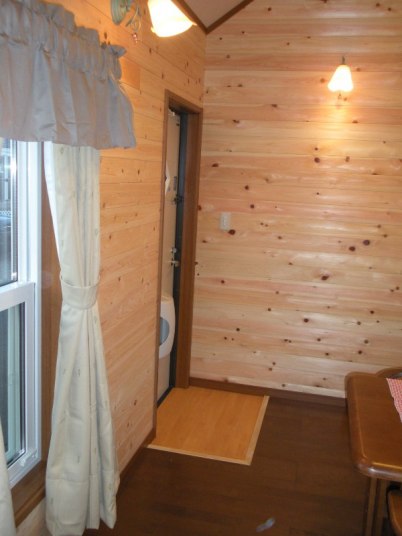

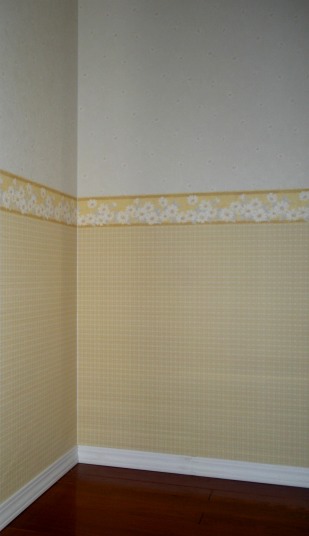

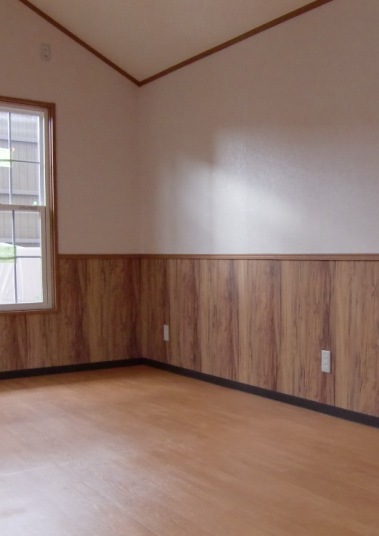

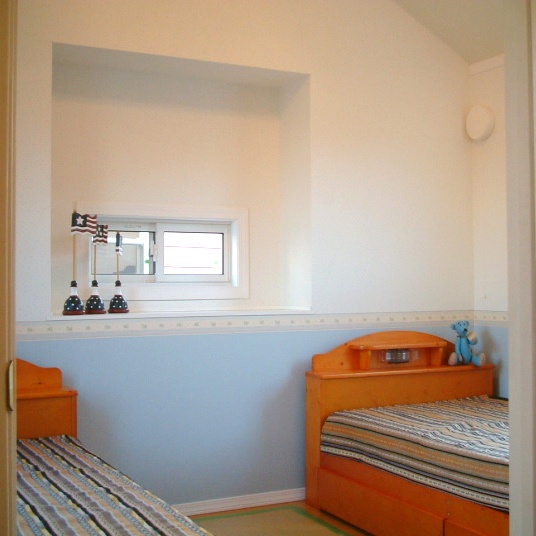

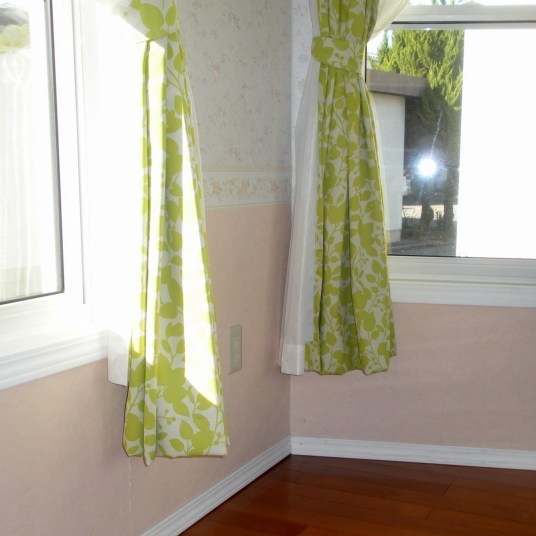

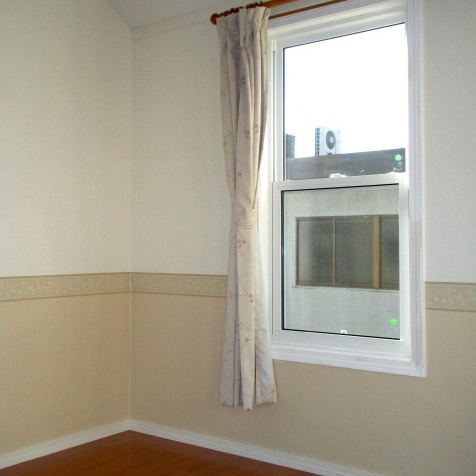

Casual Blue	Classic Beige	Noble Green	Elegance Pink	Fresh Yellow	Comfort Wood (wood pattern wallpaper)	Hinoki cypress (wood paneling)

Features

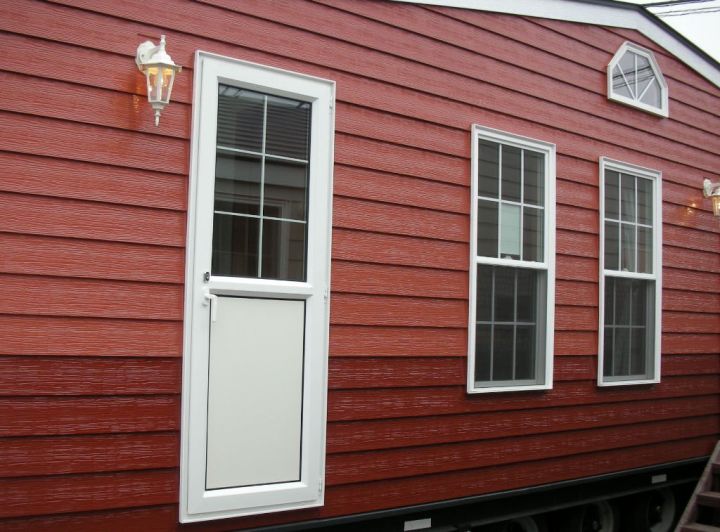

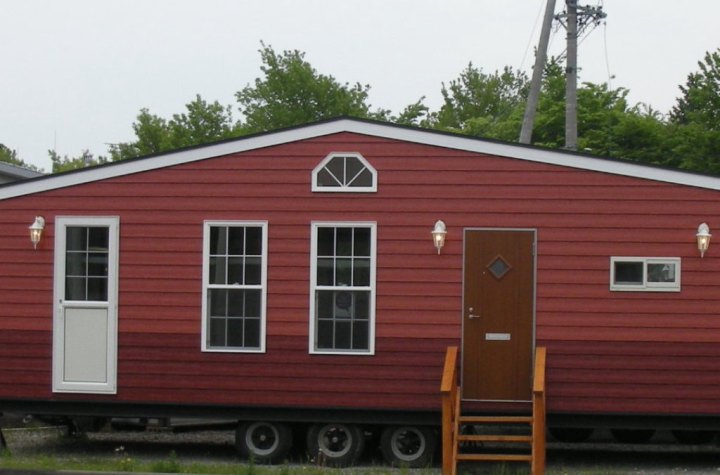

Roof shape designed easy to install solar panels	Vinyl sash double-pane windows	Living room (option: wooden flooring)	Entrance door with a mail box	Bright living room with lighting fixtures and windows

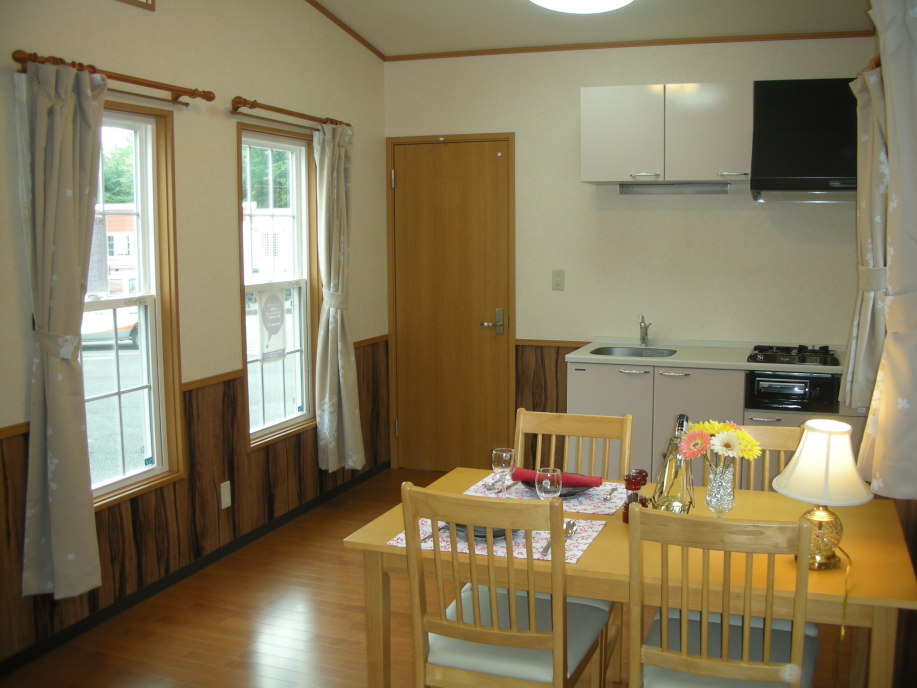

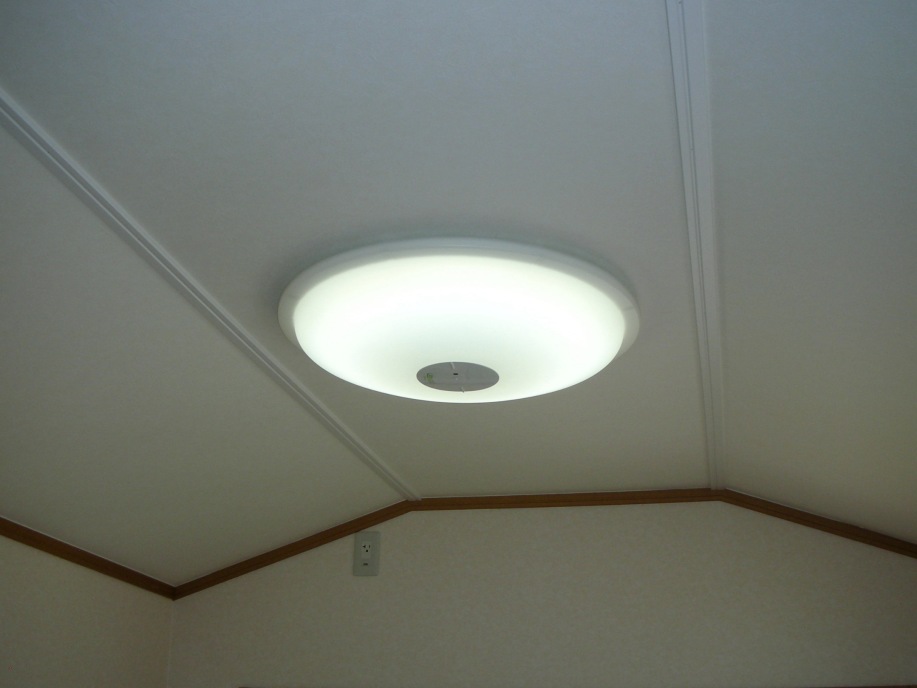

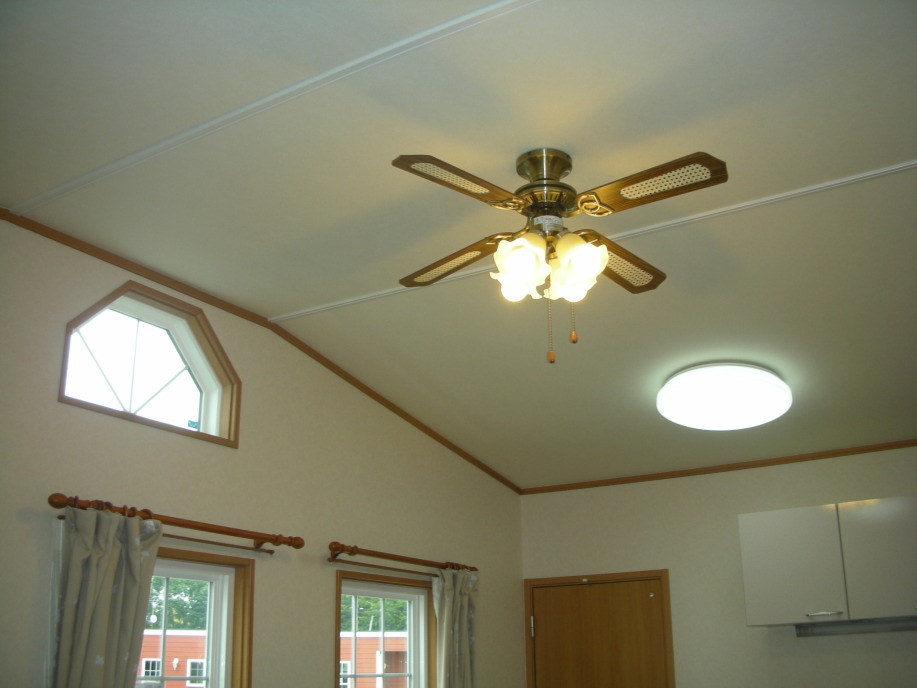

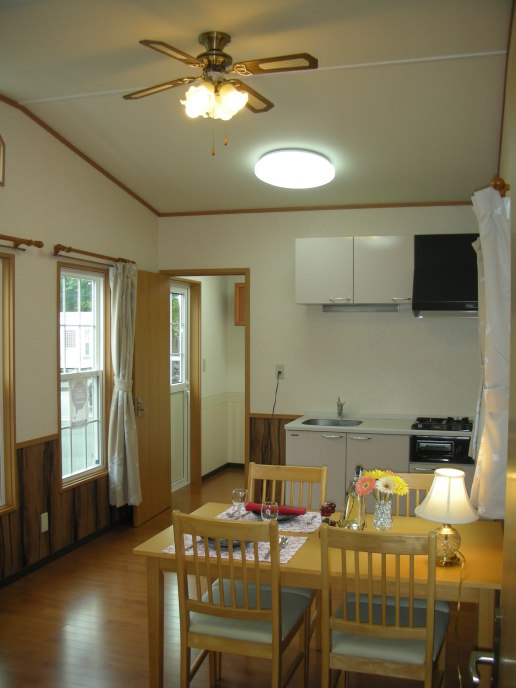

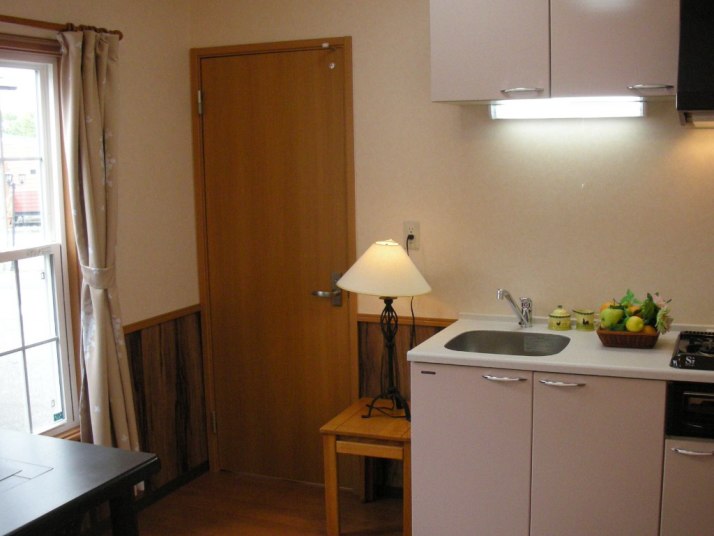

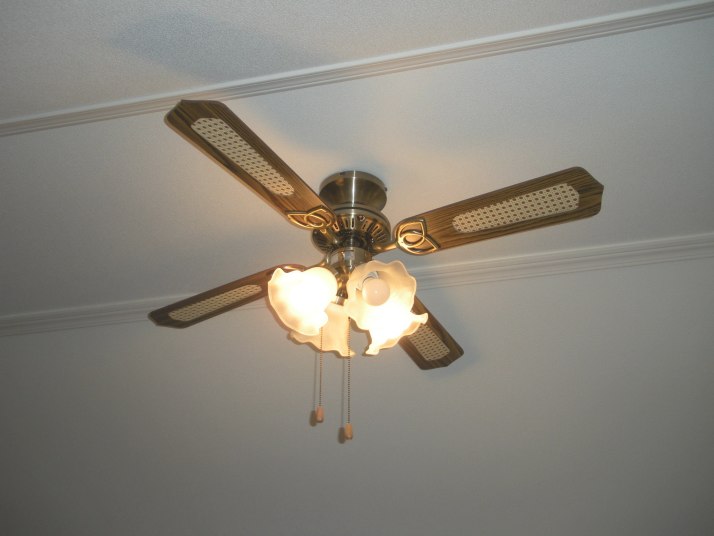

Ceiling fan, LED ceiling lights and half-octagon fixed window	Brightness: 2 or 4 lights Fan: 2-speeds, reversible rotating function	40W-class LED ceiling light (Brightness: 100%/50%/night light)	Kitchen and dining space	Kitchen with a range hood fan and cabinets

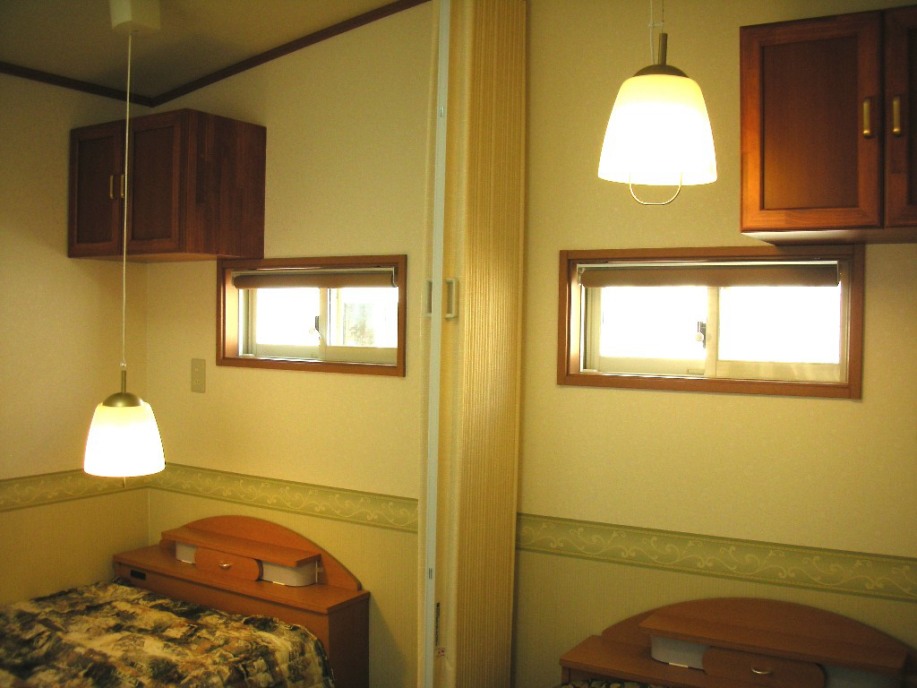

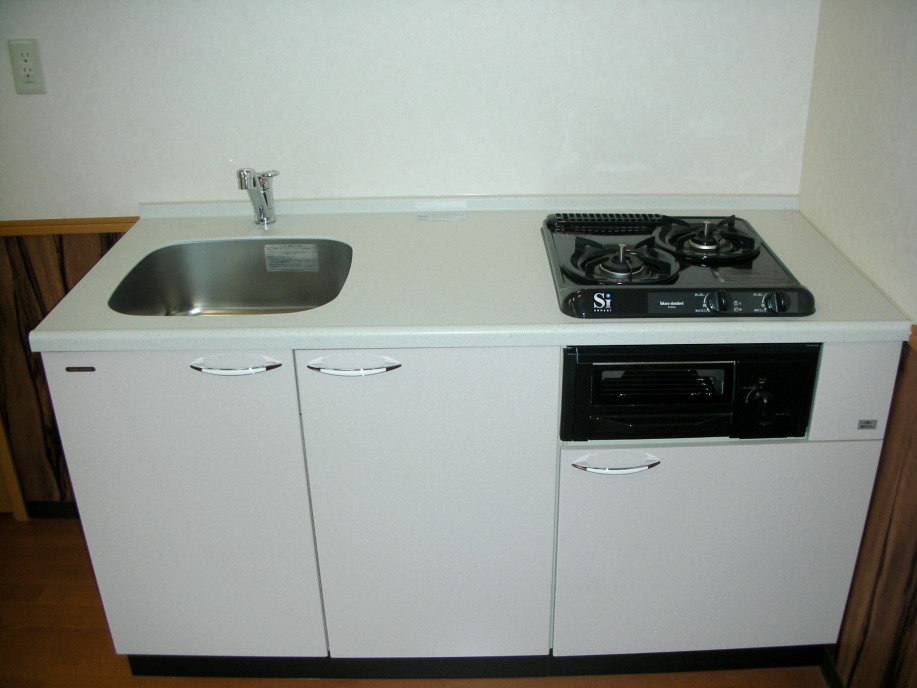

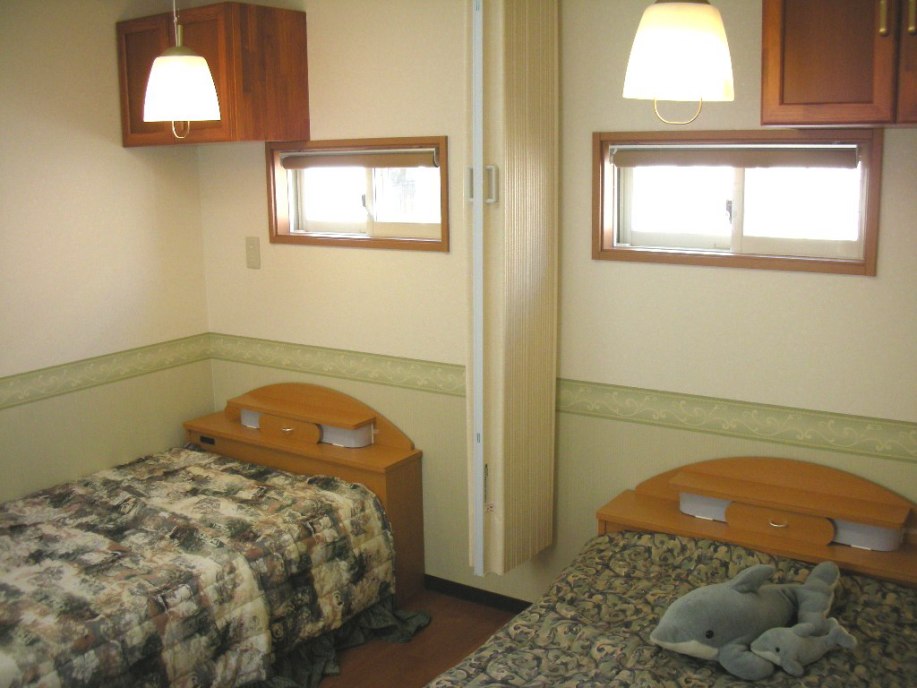

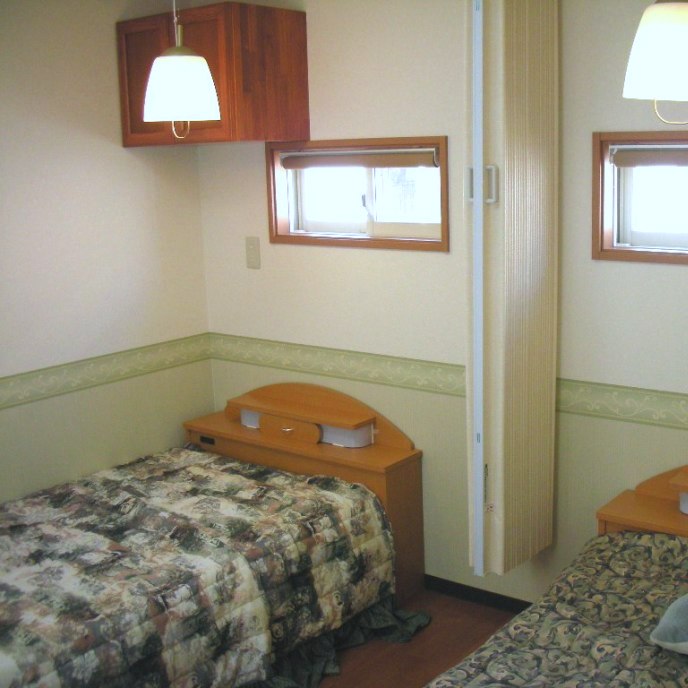

2-burner gas cooktop with fish grill	Bedroom: Overhead cabinets are installed.	Height-adjustable reading lights	Accordion curtain (option)	It becomes like a private room with drawing the curtain.

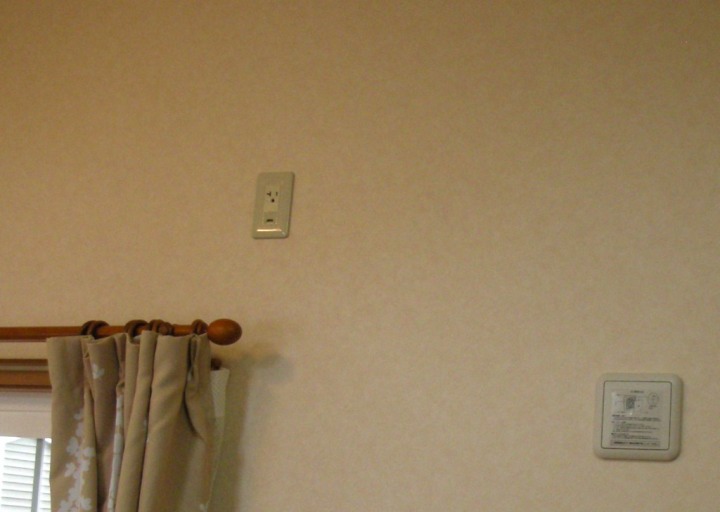

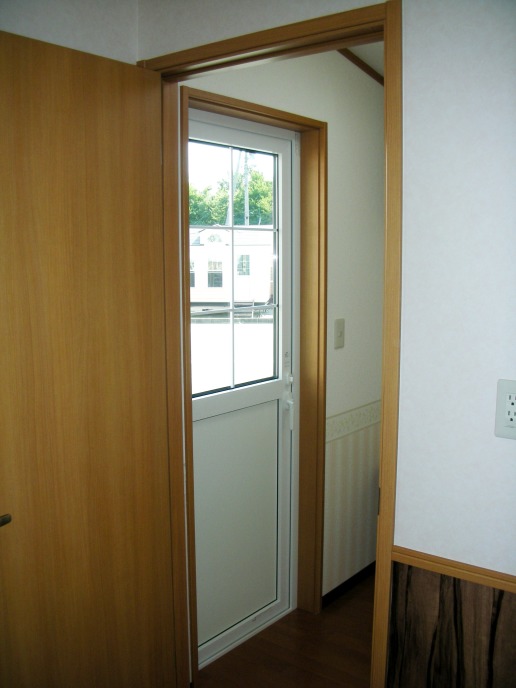

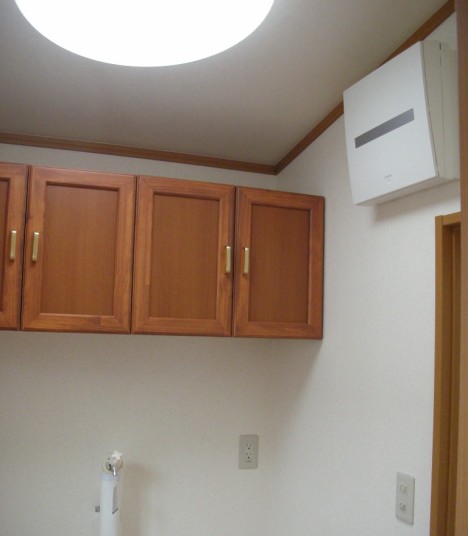

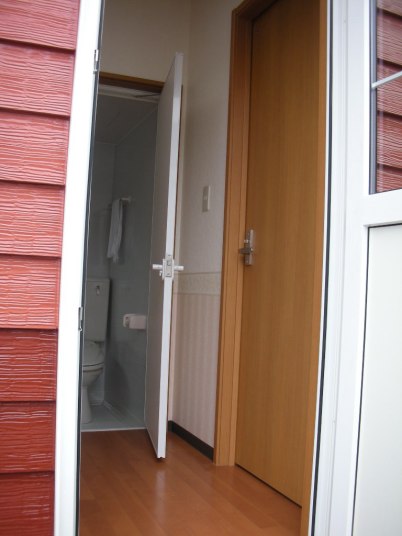

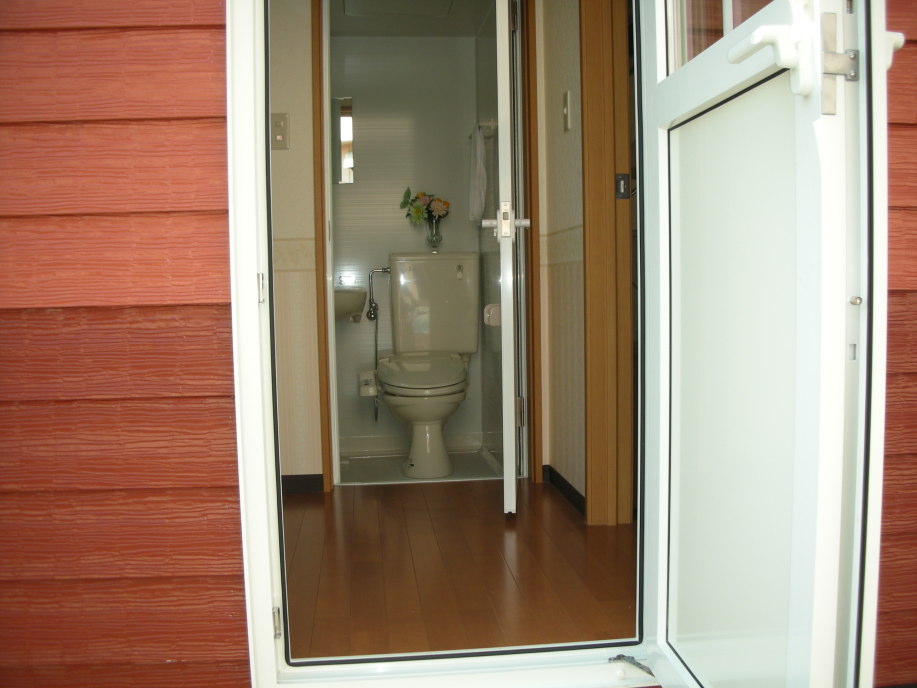

Air inlet port and air-conditioner outlet	The bathroom can be used separately from the living space.	There is an interior door with a lock between the living room and the bathroom.	Living room side	Exterior door with a lock at the dressing room. The bathroom can be opened in an emergency.

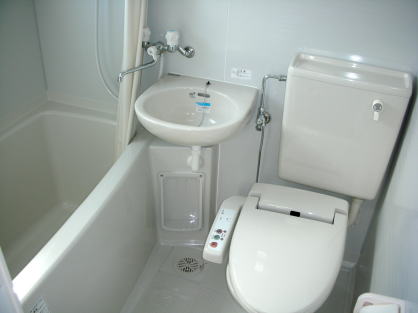

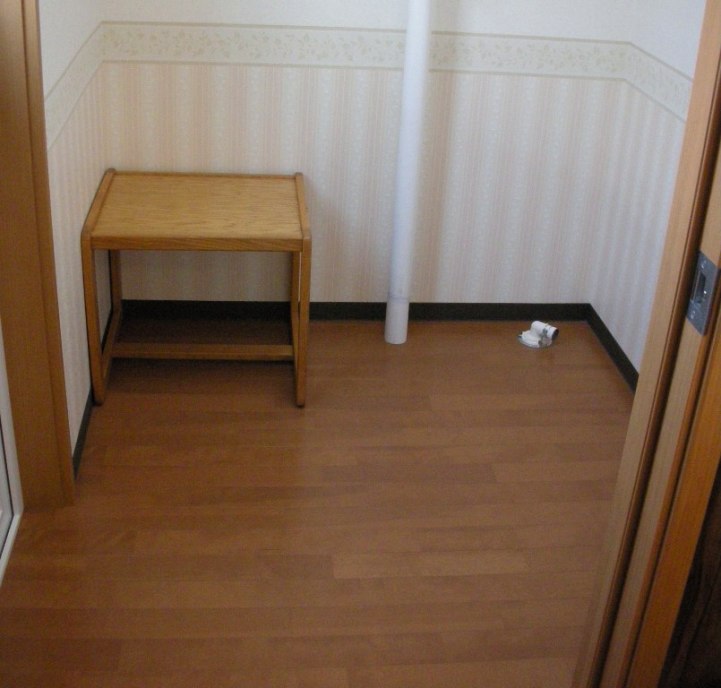

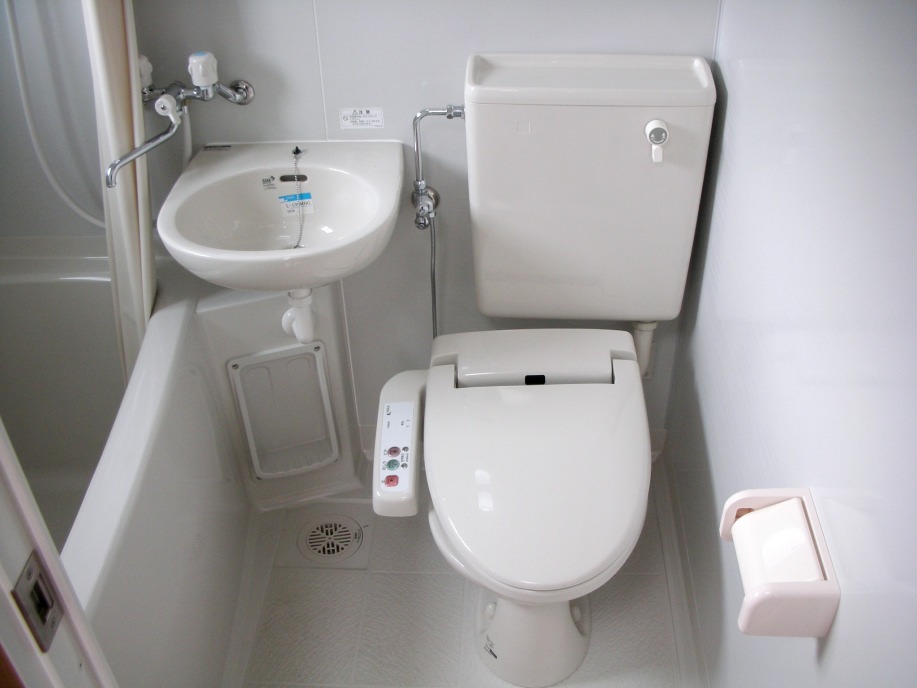

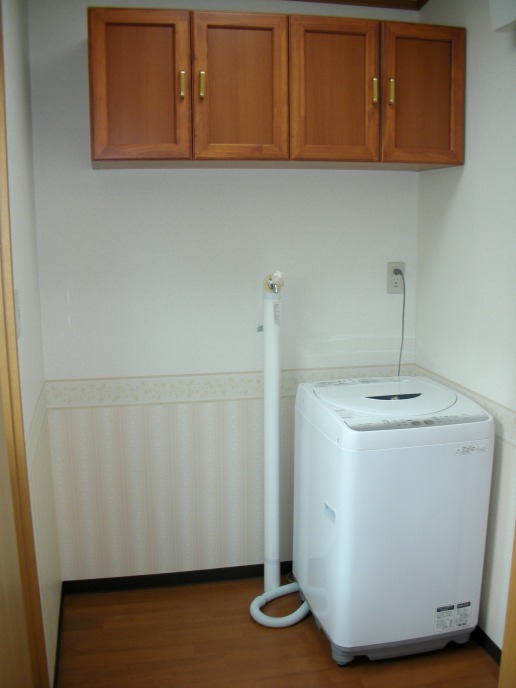

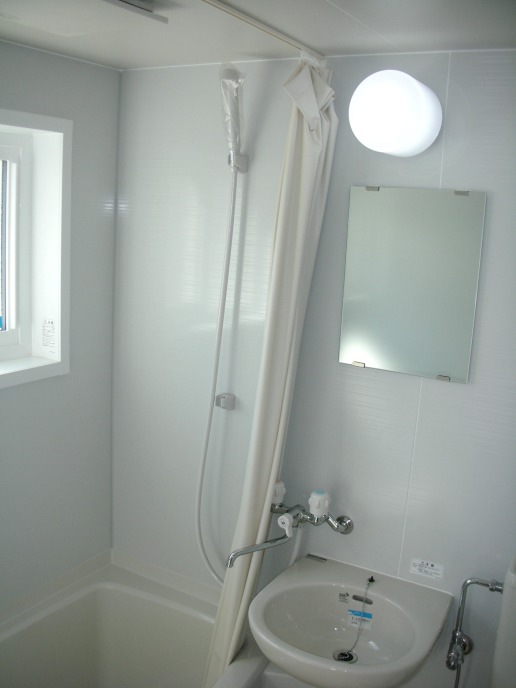

Unit bathroom (including a shower, bathtub, toilet and sink)	Toilet with washlet (bidet) function and heated seat	Dressing room with a space for washing machine	Overhead cabinet is equipped.	A breaker box made in Japan

Options

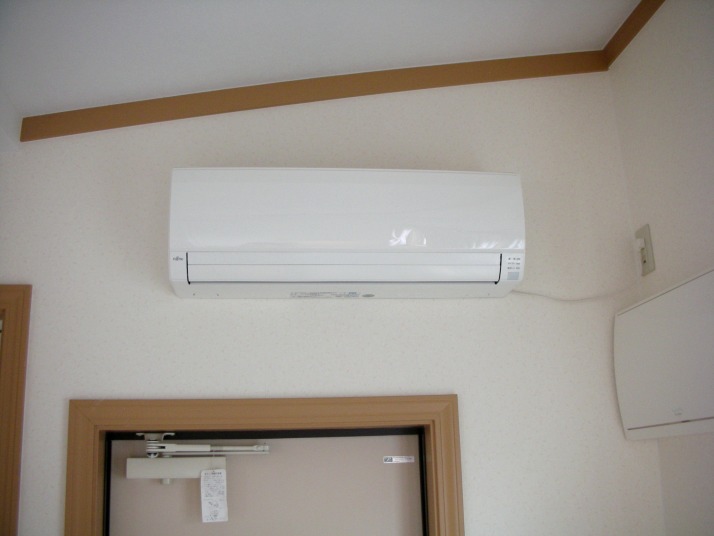

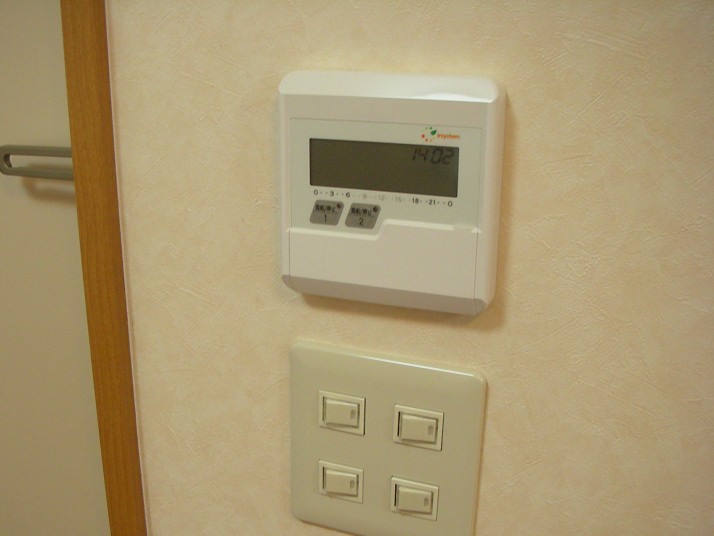

Furniture set: [double curtains (blackout&sheer, wooden rail)/ a dining table and 4 chairs/ a refrigerator (120L)/ a sofa bed/ two single beds/ an accordion curtain]			Floor heating	Air-conditioner

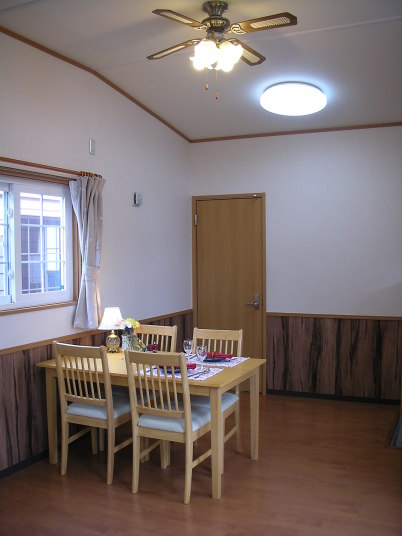

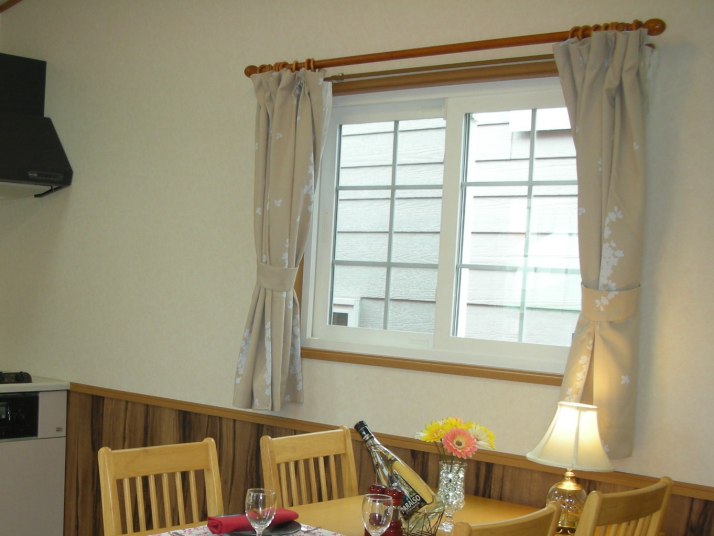

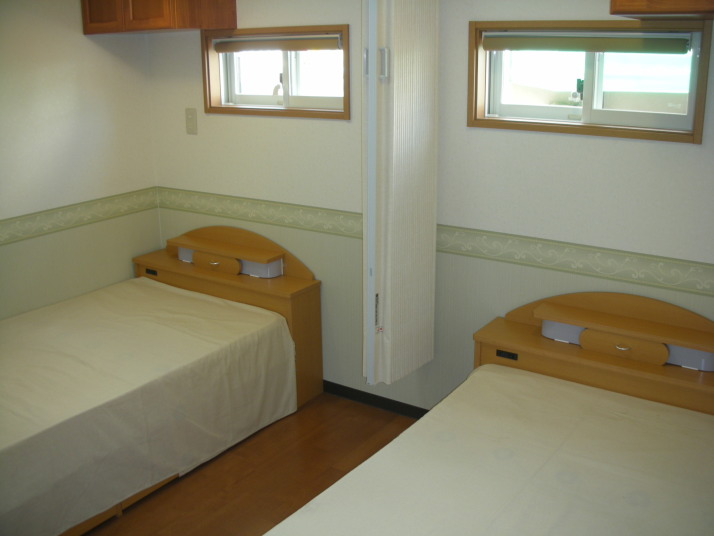

Single beds	Blackout & sheer curtains	Dining table and chairs

Floor plan

length: 10 m x width: 3.2 m

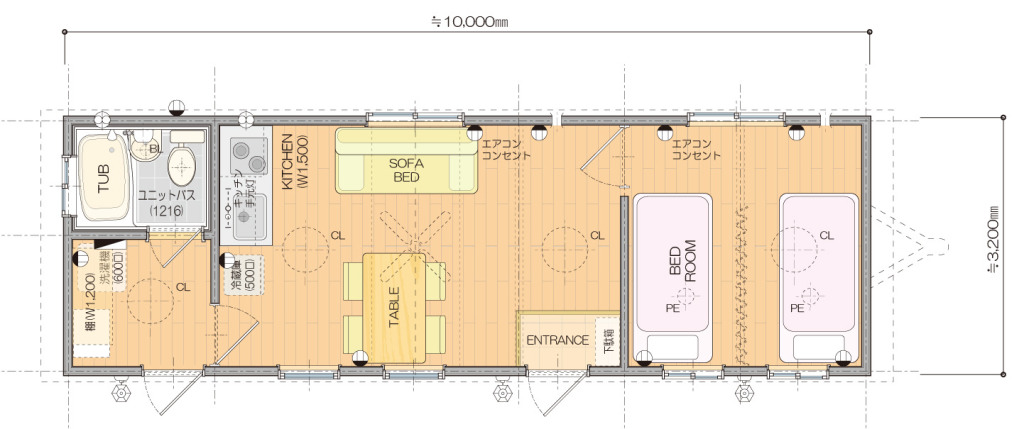

LB1032: 10m x 3.2m

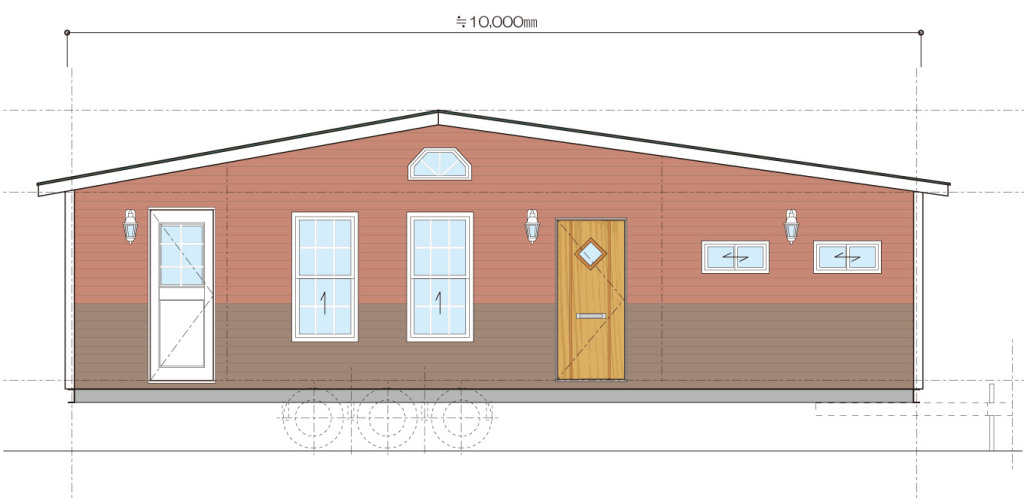

LB1032: elevation view

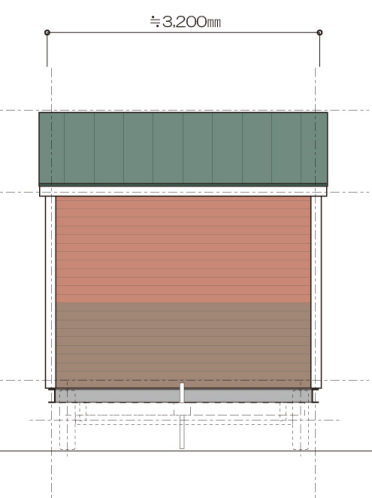

LB1032: side view

Color catalog

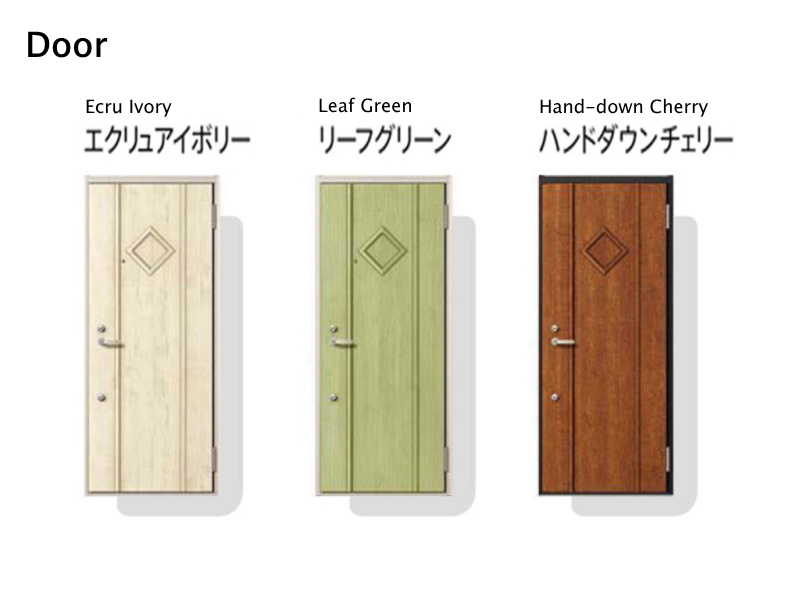

Exterior wall: Vinyl siding	Door	Roof	Porch light, window sash (standard: white)	Exterior wall (option): Fiber cement siding
Interior wall	Floor Standard: C.F. sheet (vinyl flooring) Option: wooden flooring	Kitchen	Bathroom, toilet

"Land Bridge" Equipment and specifications [House-type, 3.4m-wide model]
Standard: Std / Optional: Opt
Model		Land Bridge
Model number		LB1034		LB1134
Length		10m		11m
Price (tax-excluded) / Unit: JPY		10,800,000	11,600,000	11,100,000	11,900,000
Price (tax-included) / Unit: JPY		11,880,000	12,760,000	12,210,000	13,090,000
Equipment		Vinyl siding	Fiber cement siding	Vinyl siding	Fiber cement siding
EXTERIOR
	[Roof] Galvalume roof	Std	Std	Std	Std
	[Outer Wall] Fiber cement siding (standard 12 colors)	-	Std	-	Std
	[Outer Wall] Vinyl siding (standard 9 colors)	Std	-	Std	-
	Vinyl sash double-pane windows with Low-E glass and argon gas fill	Std	Std	Std	Std
	Entrance door with a mailbox	Std	Std	Std	Std
	Porch lights	Std	Std	Std	Std
	Outdoor electrical outlet (1)	Std	Std	Std	Std
INTERIOR
	[Interior Wall] Cloth finish (standard 5 colors)	Std	Std	Std	Std
	[Floor] Vinyl flooring (C.F. Sheet) (standard 6 colors)	Std	Std	Std	Std
LIVING ROOM
	Ceiling fan with lights	Std	Std	Std	Std
	LED ceiling lights	Std	Std	Std	Std
BEDROOM
	LED ceiling light	Std	Std	Std	Std
	Reading lights (height adjustable)	Std	Std	Std	Std
	Overhead cabinet	Std	Std	Std	Std
KITCHEN
	150cm-wide kitchen (a range hood fan, overhead cabinet included): 1-basin sink, 2-burner gas cooktop with a fish grill	Std	Std	Std	Std
BATHROOM & DRESSING ROOM
	Unit bathroom (shower, bathtub, toilet, bathroom sink)	Std	Std	Std	Std
	Toilet with a heated seat and bidet function	Std	Std	Std	Std
	Space for a washing machine	Std	Std	Std	Std
	Exterior door with a lock	Std	Std	Std	Std
	Overhead cabinet	Std	Std	Std	Std
	LED ceiling light	Std	Std	Std	Std
EQUIPMENT
	40AMP breaker (made in Japan)	Std	Std	Std	Std
	Wall outlets	Std	Std	Std	Std
	Air-conditioner outlet	Std	Std	Std	Std
STRUCTURE
	Frame of channel steel	Std	Std	Std	Std
	Axles with rear brakes	Std	Std	Std	Std
	2x4 structure	Std	Std	Std	Std
	Waterproof sheet	Std	Std	Std	Std
	Truss roof (resist snow accumulation)	Std	Std	Std	Std
	Heat insulating material for cold districts (wall, roof, floor)	Std	Std	Std	Std
SIZE
	Body size [Length x Width x Height (from the ground)]	10.0m x 3.4m x 3.8m		11.0m x 3.4m x 3.8m
	Size including a hitch and eaves	11.2m x 3.4m x 3.8m		12.2m x 3.4m x 3.8m
	Gross weight (kg)	4,700	5,700
	Withstand load (3 axles, 6 tires) (kg)	8,250	8,250	8,250	8,250

NOTES: Specification may change due to makers' specifiation changes or supply situations of parts or materials. Photos shown in this page may include optional equipment and specifications, or props that are for photography purposes only. Colors shown may vary due to reproduction and printing processes. Floor plan images may include optional furniture or home appliances depicted as arrangement examples.
