We would like to offer our sincere sympathy to those who are affected by natural disasters, earthquakes, etc.
As supporting the recovery of the afflicted areas, we set a half price on a distance transport charge for the victims. *Presentation of a disaster-victim certificate is required.
Basics of Transporting Mobile Homes (national road, expressway, shipping)
  1. We safely and efficiently deliver mobile homes to your desired site.
  2. As for large sized mobile homes, traffic permission for a special-purpose vehicle is required.
    (It is necessary to apply 3 months in advance because it takes time to aquire.)
  3. We make a transport plan with doing prior investigation. (Investigation costs required separately.)
Transportation Costs
    *Costs, Charges, etc. stated on this page is not including tax. Consumption tax will be added.
Transport distance differs much in a route used. We decide a distance along an actual driving route.
Road width must be over 4 meters in straight roads, over 7 meters at curves, and over 7 meters of both roads at crossings. And also, electric wire, signs, and any other obstacles on the road need to be confirmed in advance.
Basic Transportation Charge: 100,000 yen
  1. Transporting is basically done from 8 p.m. to 6 a.m.
  2. We transport safely with a wrecker truck. A guiding vehicle and a following vehicle for safety confirmation accompany to ensure safety around. (with three transport staffs)
  3. As for transportation of a small-size product, a basic charge is 25,000 yen because guiding vehicles accompanying are unnecessary.
Application fee for traffic permission of a special vehicle: 40,000 yen
(including costs for compulsory automobile liability insurance and temporary service permission.)
Application fee for standards relaxation: from 30,000 yen to 200,000 yen
(except our products made after the year of 2010.)
Mobile homes whose size exceeds the size regulation are required to receive approval of standards relaxation, and obtain traffic permission of a special vehicle.
>> Notification from Ministry of Land, Infrastructure, Transport and Tourism (promulgated and enforced on December 27, 2012.)

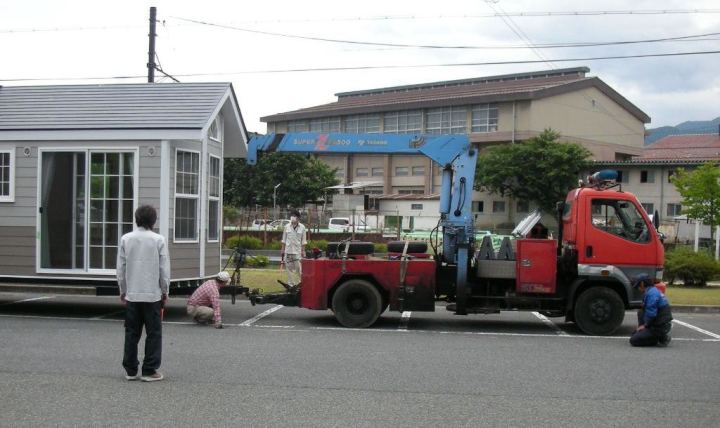

Brake test (25km/h)
Hit the brakes at a line, and measure the braking distance

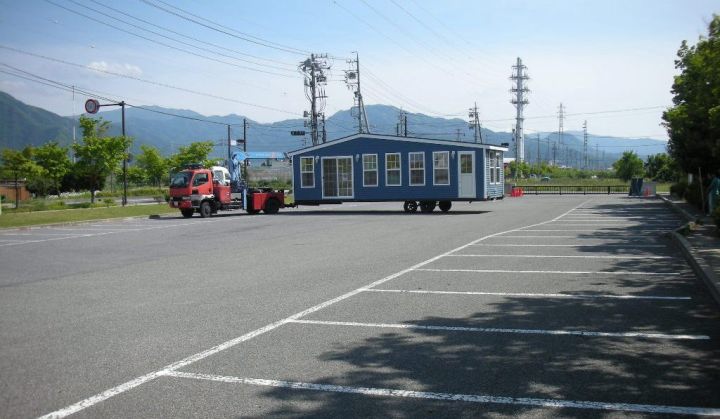

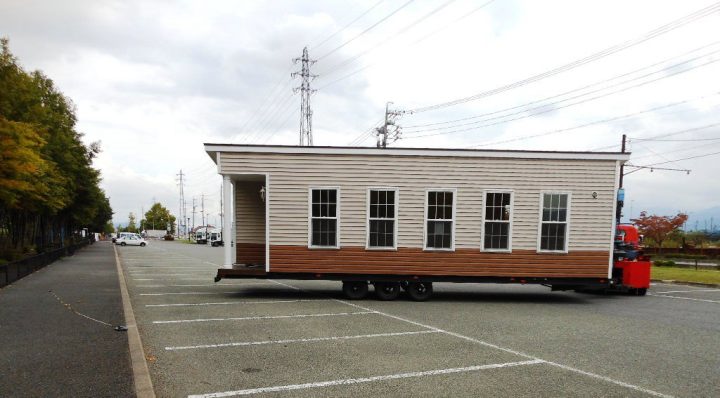

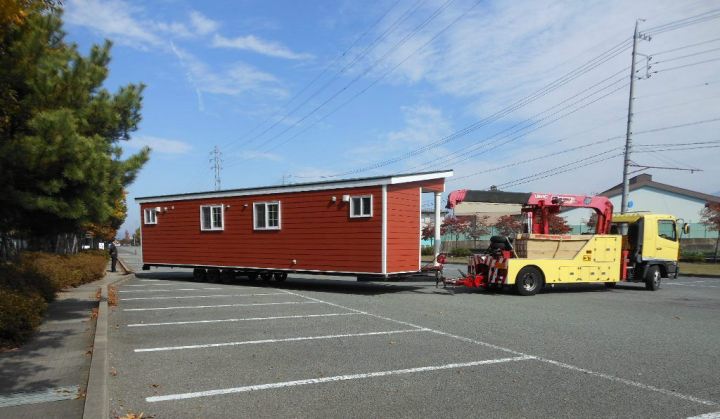

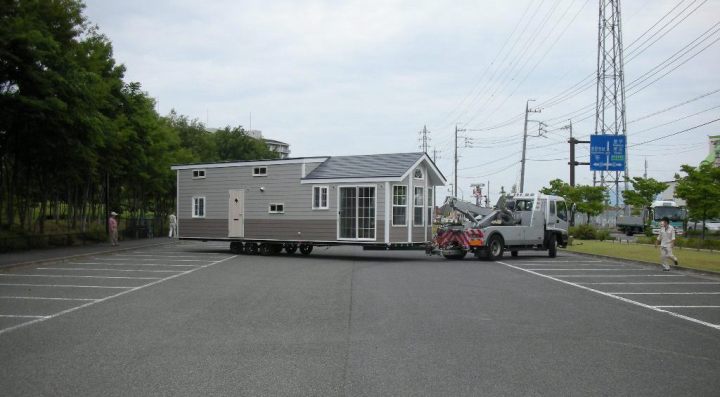

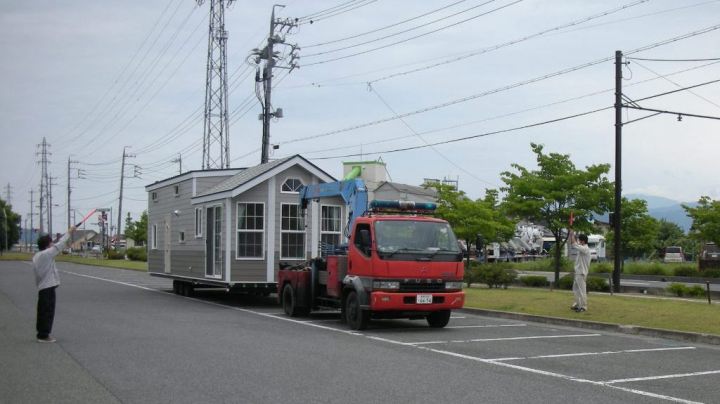

Minimum turning radius test
Turning radius of B-Shop
Turning radius of Premium
Turning radius of Royal

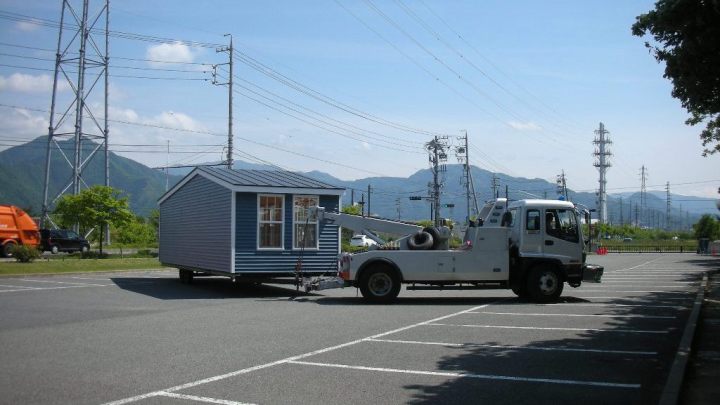

Turning radius of B-Shop with Isuzu truck
Turning radius of Catalina
◆ There may be cases transporting is not possible depending on products.
There are some products which can not be applied for the standards relaxation because their vehicle structure, strength of underbody, minimum turning radius, stable inclination angles, braking capability, etc. can not be proved. So they can not be transported. Please comfirm the certificate of manufacturing, the certificate of origin, etc.
Tables of Transportation Charge according to Distance
Large Size : Exceeding either 3m in width or 10m in length (including the eaves)
distance
(km)
10 50 100 200 300 400 500 600 800 1,000 1,100
price
(yen)
12,000 60,000 120,000 240,000 360,000 440,000 520,000 600,000 760,000 920,000 1,000,000
  • The traveling distance is up to 200 km per day. Transport is at night only.
  • A wrecker truck and two guiding vehicles, with three transport staffs
Medium Size : Exceeding either 2.5m in width or 10m in length (including the eaves)
distance
(km)
10 50 100 200 300 400 500 600 800 1,000 1,100
price
(yen)
8,000 40,000 80,000 160,000 240,000 297,000 344,000 411,600 525,000 640,000 697,000
  • The traveling distance is up to 200 km per day. Transport is at night only.
  • A wrecker truck and two guiding vehicles, with three transport staffs
Small Size : Up to width 2.5m x length 10m (including the eaves) (No guiding vehicle necessary)
distance
(km)
10 50 100 200 300 400 500 600 800 1,000 1,100
price
(yen)
6,000 30,000 60,000 120,000 180,000 222,000 265,000 315,000 394,000 480,000 523,000
  • A wrecker truck, with two transport staffs. (Guiding vehicle is not needed.)
Travel Expenses, etc.
• In the case lodging is required: 24,000 yen/day for three staffs
  1. In the case transport distance as to medium-size or large-size exceeds 200 km, lodging is required on the way. Lodging expense, and incidental expenses (if required)
  2. In the case a departure place is distant, lodging expense if lodging is required to collect a mobile home in a distant place
  3. In the case a departure place is distant, travel expenses (actual cost) to collect a mobile home in a distant place
Special Discount
• Discount for large orders (depends on contents)  *Please ask for more information.
Use of Heavy Machinery when carrying-in and -out (forklift, crane, etc.)
  1. Road width needs to be 7 meters or more at curves and crossings (both roads). Heavy machinery will be needed if road width is narrow.
  2. In case that a carrying-in path can not be secured, a mobile home can be carried-in by a forklift or a crane.
Setting-Up (level adjustment) Charge: 80,000 yen
  1. Transport a mobile home to your desired place
  2. Decide an installation height from the ground of the mobile home, by using a wrecker truck and hydraulic jacks
  3. Level the mobile home in front-and-rear and left-and-right directions to make it stable
* We use jacks exclusive for mobile home for leveling and setting up mobile homes. We also sell the jacks.
Other Costs separately incurred
  • Costs for connecting/disconnecting utilities
  • Costs for steps, decks, jacks, etc.
NOTE: The transportation costs are subject to change due to fluctuation of a gasoline price, etc.

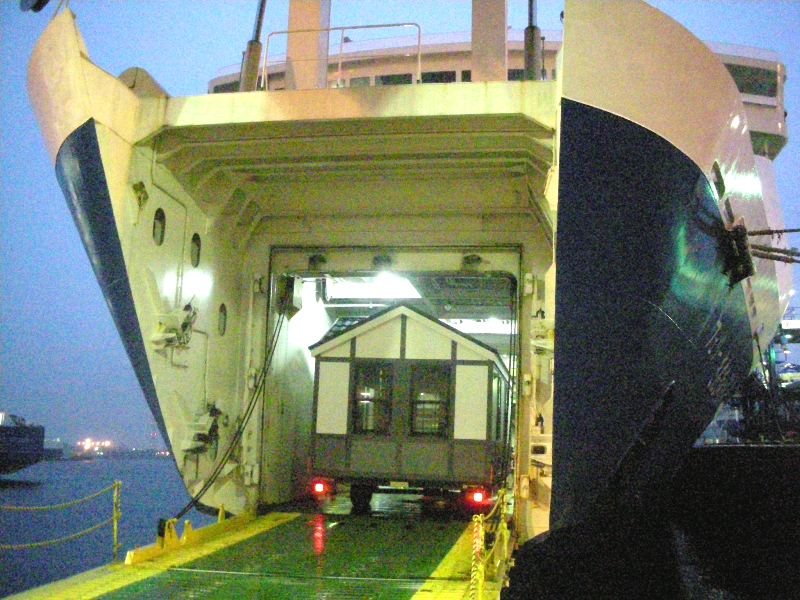

Transportation by Ship

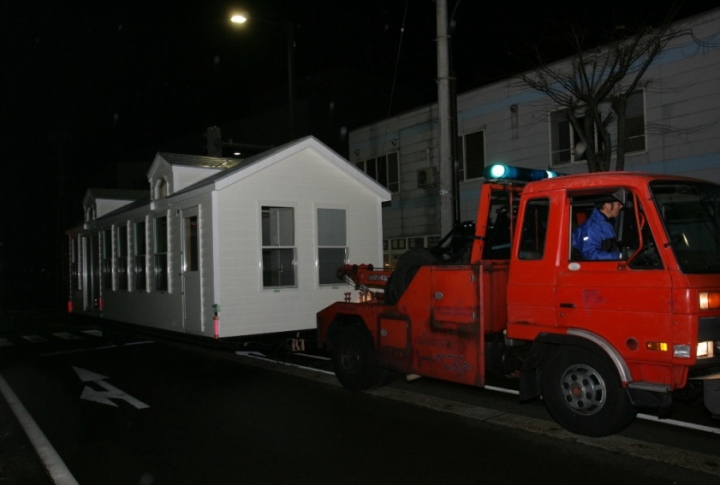

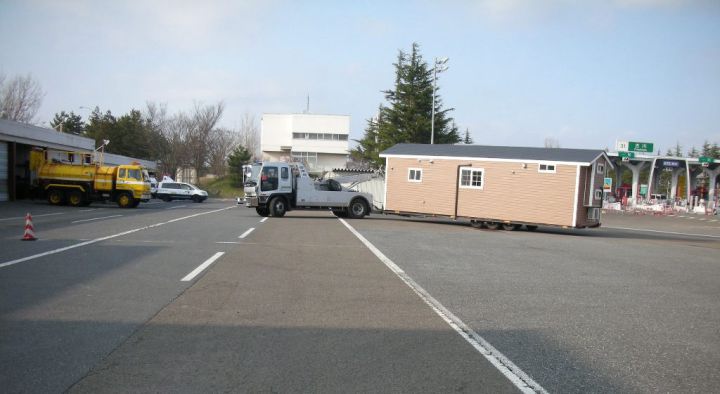

Land transportation

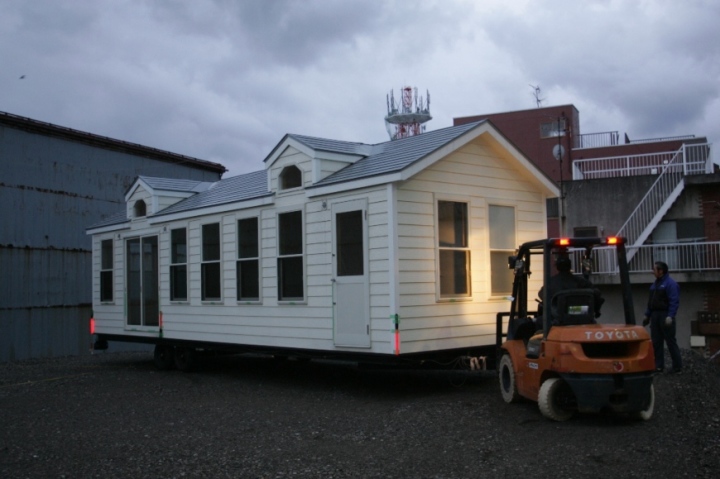

Fork lift

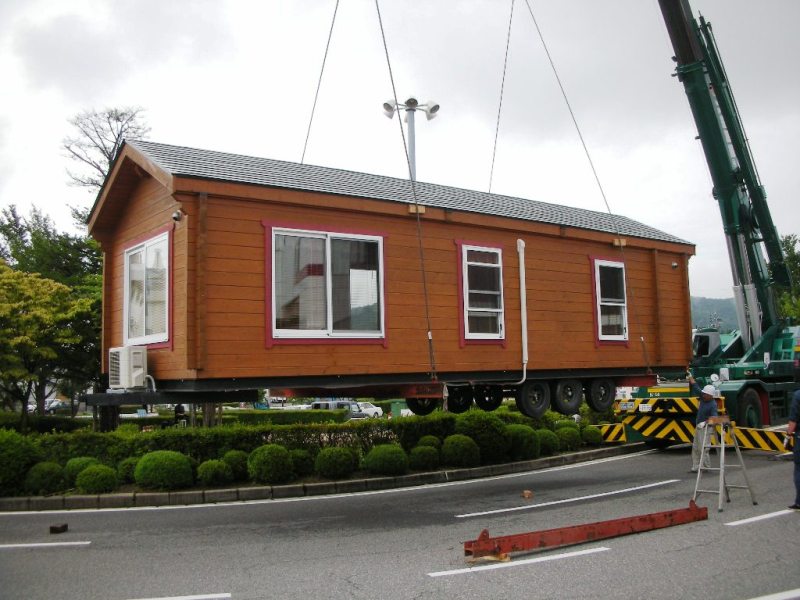

Crane

Leveling

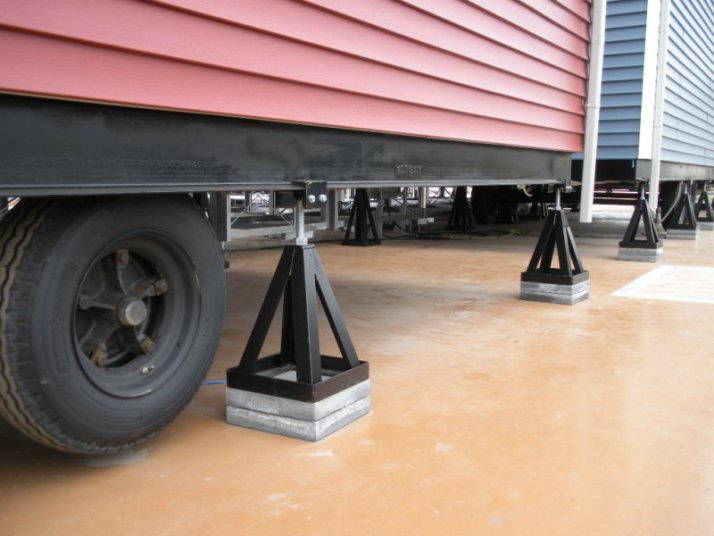

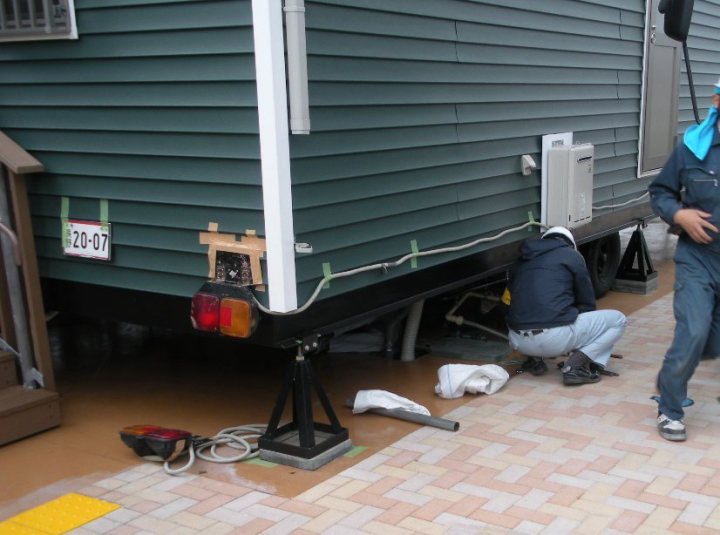

Setting up by jacks
We Make Sure to Deliver the Products to You in a Safe and Professional Manner.

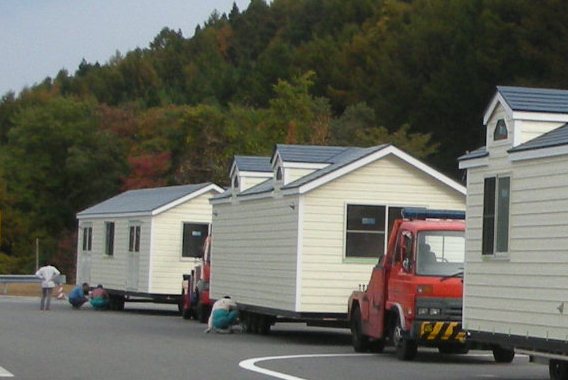

Checking the condition of tires
We check tire condition, air-pressure, bearings, etc. on the way.

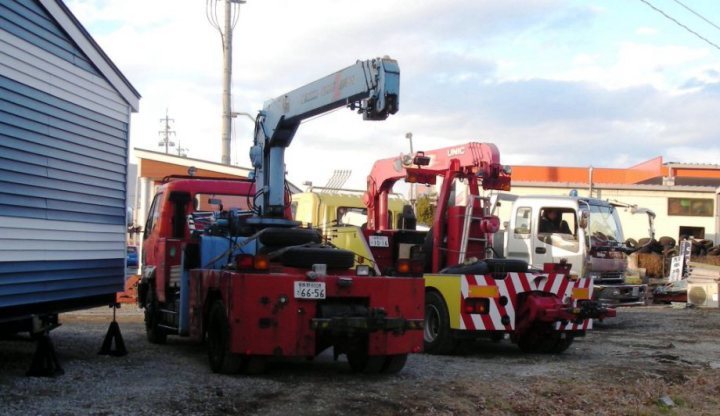

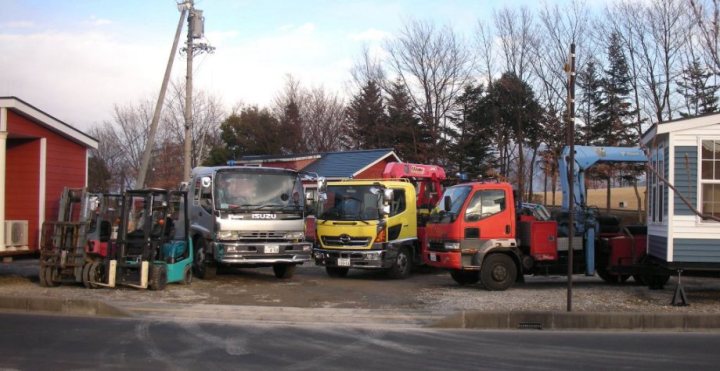

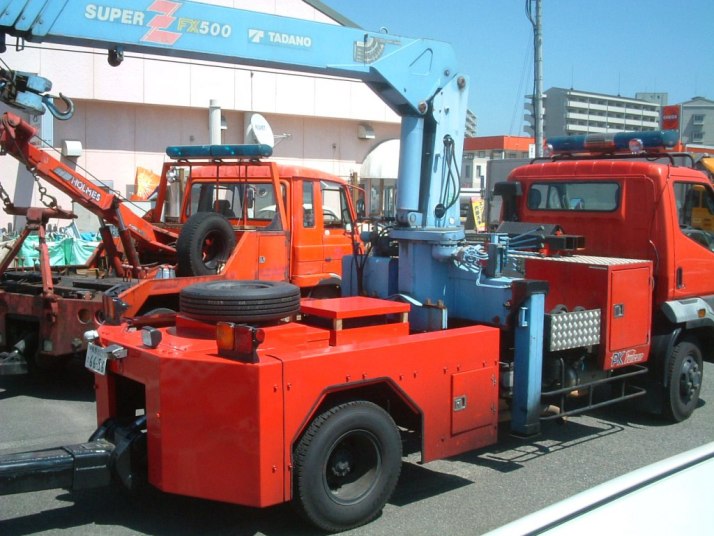

Our Wrecker Trucks and Forklifts
  1. Wrecker with a 10t Underlift and a 3t Crane (Mitsubishi)
  2. Wrecker with a 10t Underlift and a 4t Crane (Hino)

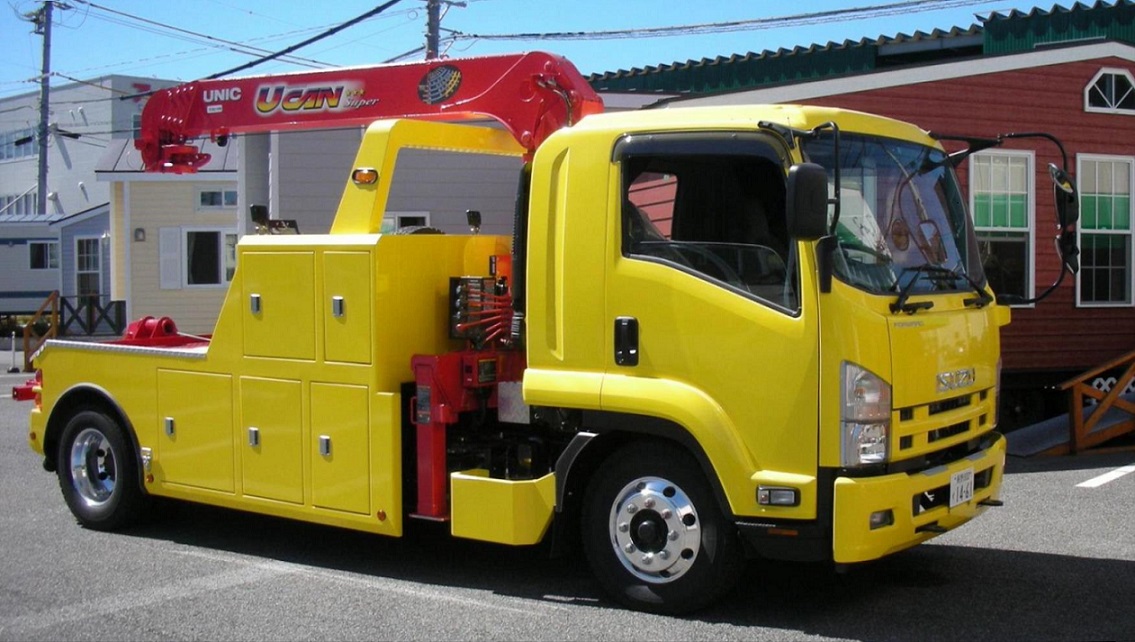

  3. Wrecker with a 10t Underlift and a 5t Crane (Isuzu)
  4. Wrecker with a 10t Underlift and a 4t Crane (Isuzu)
  5. Two forklifts
* We transport your mobile homes with ensuring safety with guiding and following vehicles.
Next 4 Months Schedule
July August September October
Sun Mon Tue Wed Thu Fri Sat
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31
Sun Mon Tue Wed Thu Fri Sat
      1 2 3 4
5 6 7 8 9 10 11
12 13 14 15 16 17 18
19 20 21 22 23 24 25
26 27 28 29 30 31
Sun Mon Tue Wed Thu Fri Sat
            1
2 3 4 5 6 7 8
9 10 11 12 13 14 15
16 17 18 19 20 21 22
23
/30
24 25 26 27 28 29
Sun Mon Tue Wed Thu Fri Sat
  1 2 3 4 5 6
7 8 9 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31
  • Yellow frame: Booked.
  • Blue frame: Vacant.
  • Red letter: Not available.
  • * Updated on July 1, 2018.
  • * During the winter months, when snowing or icy, transport is postponed.
  • * Transport schedule may change due to transport related to restoration of earthquakes and disasters. We appreciate your understanding.
  • * In acquiring traffic permission for a special vehicle, we need to obtain an approval of standards relaxation.
    As for medium-size and large-size, please contact us in advance (at least 3 months in advance).
Cautions and Extra Charges for Transporting Old Trailers
  1. Old tires, flat tires, tires with cracks, deterioration of bearings, etc. might cause a serious accident during transporting.
  2. Although our transport staffs do carry spare parts, prior confirmation is required.
  3. There may be some mobile homes untransportable. Please contact us in advance.
