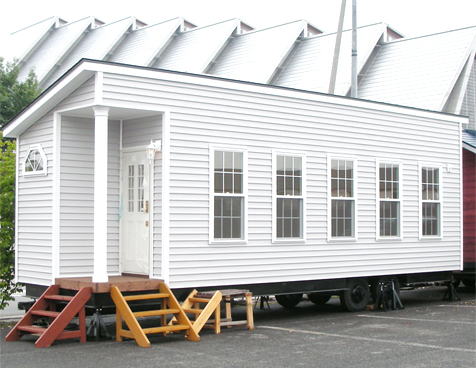

Catalina
The name of this model originated from 'Catalina Island', a scenic resort off the West Coast of the U.S. The Catalina series has stylish external appearance with a wood deck porch and a white column. Its front wall is made taller in order to enable to attach a signboard, etc. in consideration of business uses. And also, it is designed in consideration of installation of equipment, such as a toilet, storage and a mini-kitchen, etc. The catalina series cope with various sizes, from small size to large size. Last Updated: July 1, 2017 |

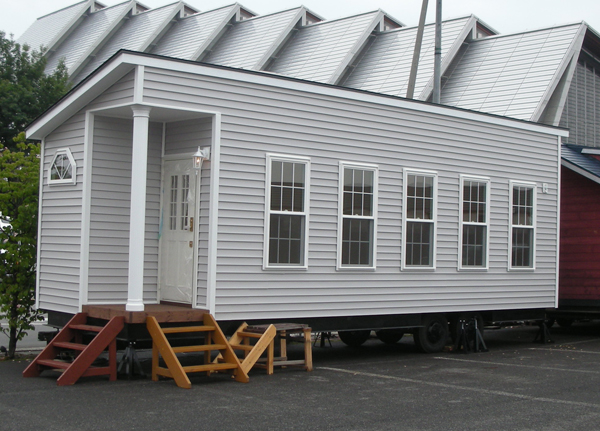

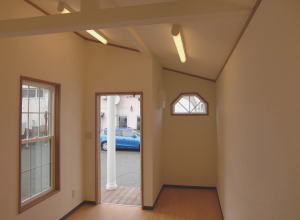

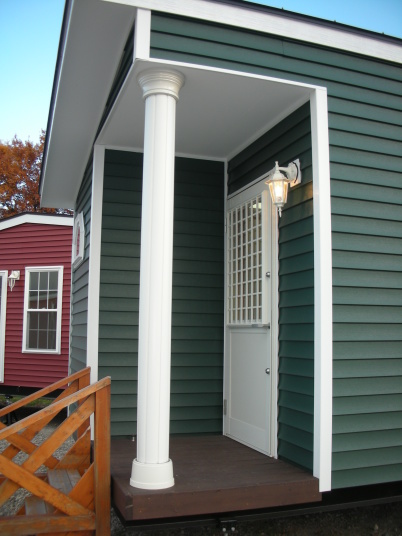

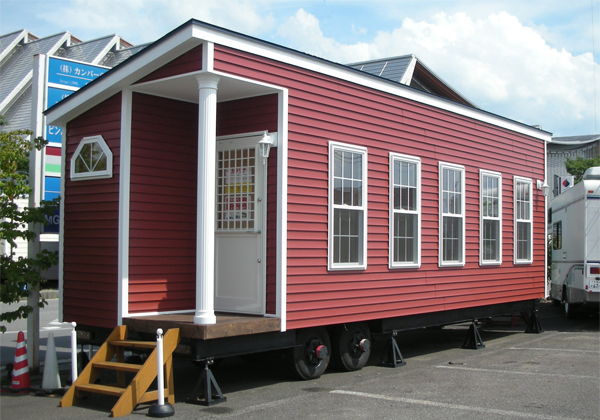

The entrance with a stylish column & porch light |
  |
 Previous model |
 New model |

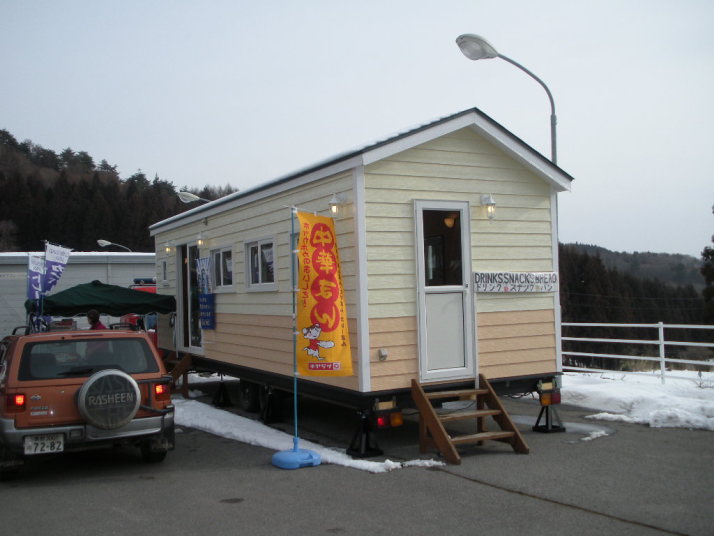

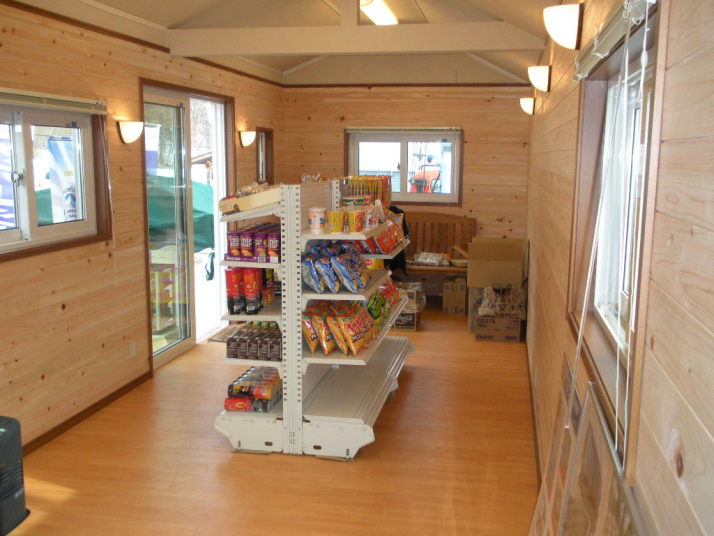

 Kiosk |
 Dog run and grooming shop |

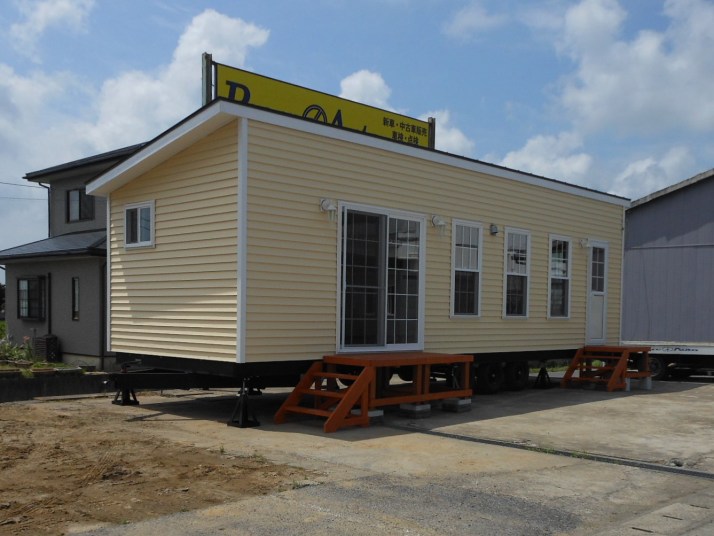

 Shop |

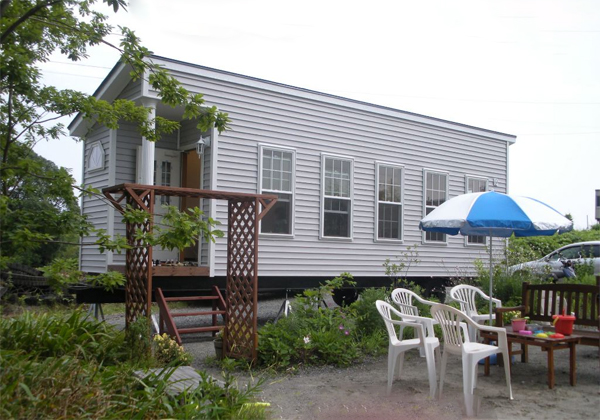

Exhibition model
|
Exhibition model
|

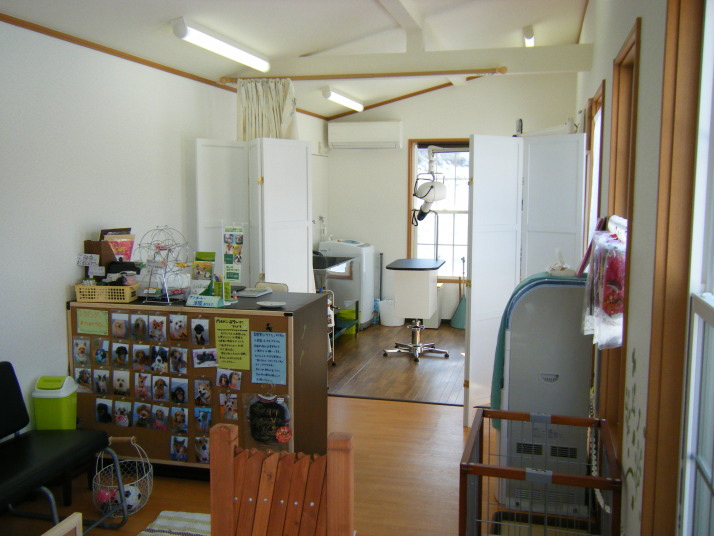

Dog run & dog grooming shop
|
Facility of a maternity hospital
|

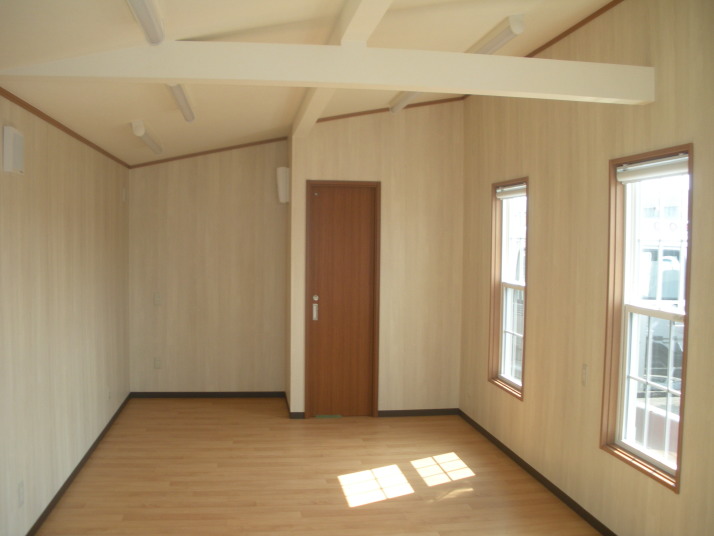

Office
|

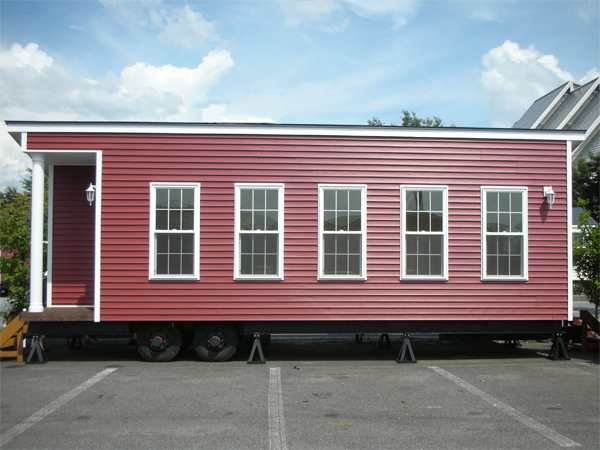

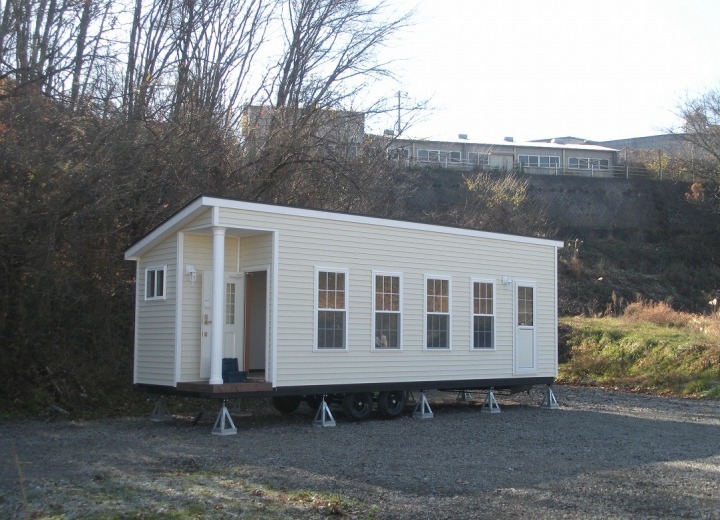

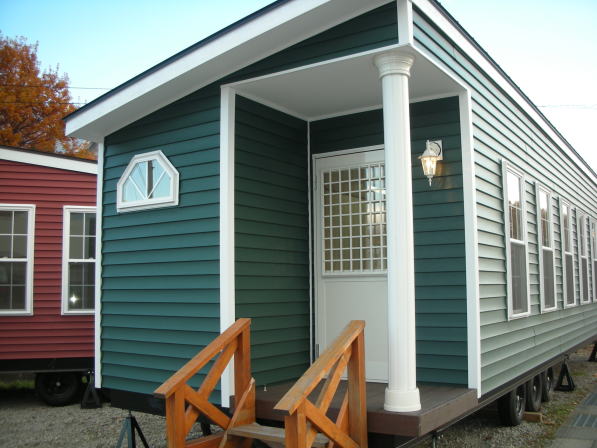

Wood deck & column, porch lights
|

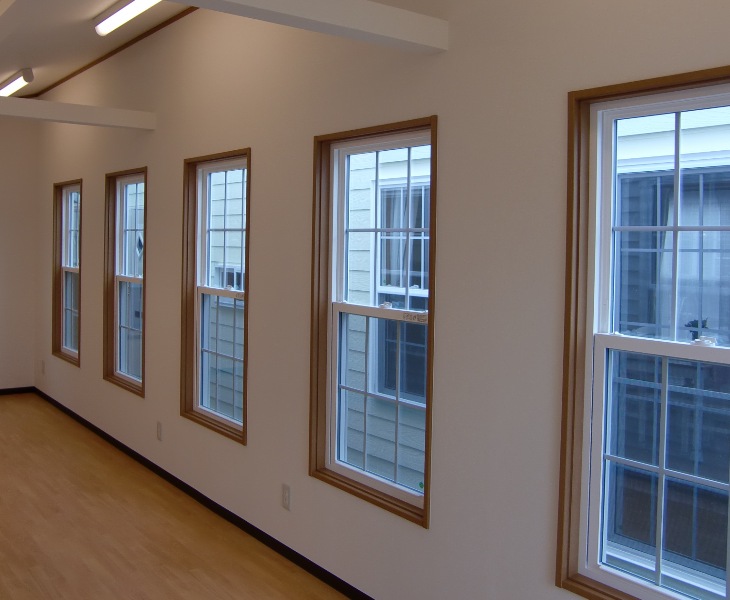

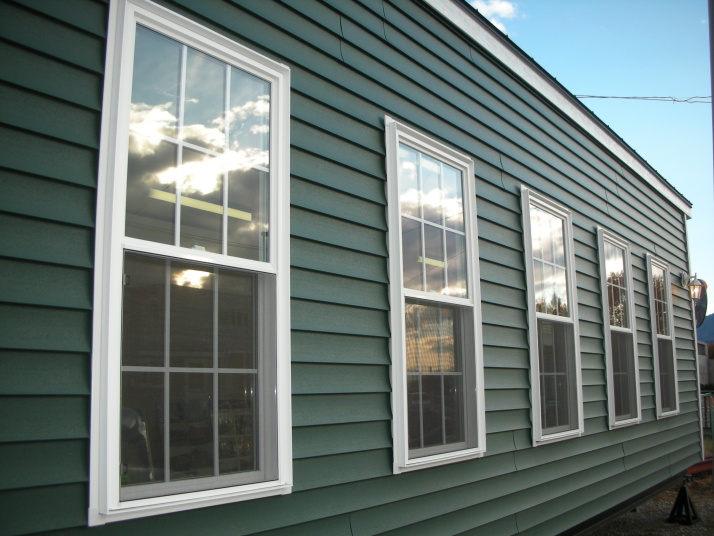

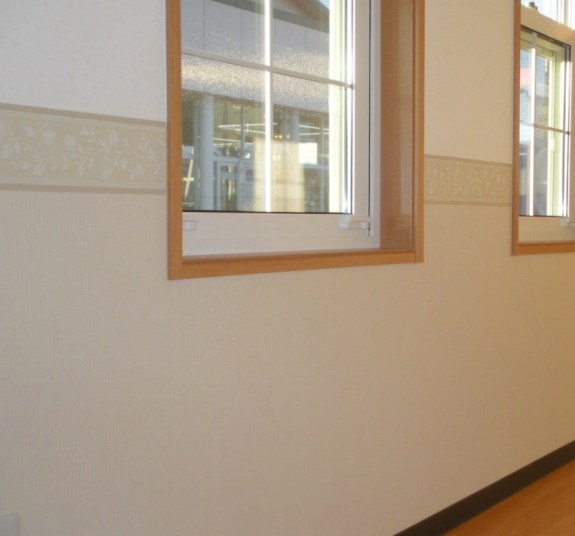

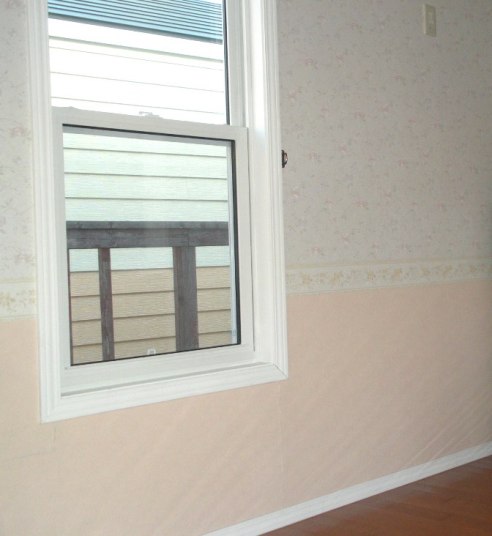

Stylish vinyl sash windows with grids
|

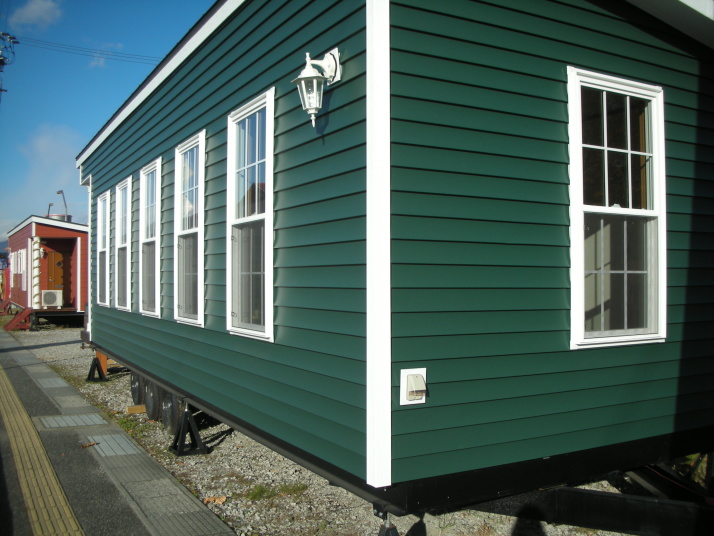

Waterproof outlet
|

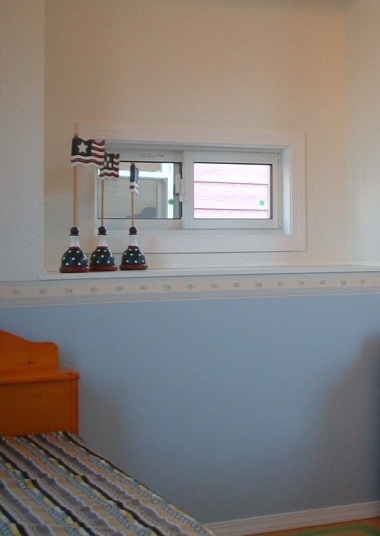

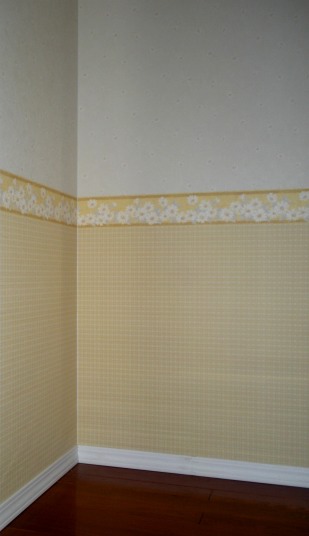

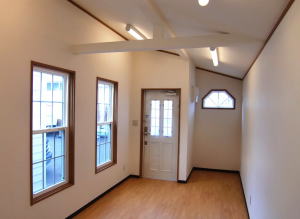

White wallpaper finish
|

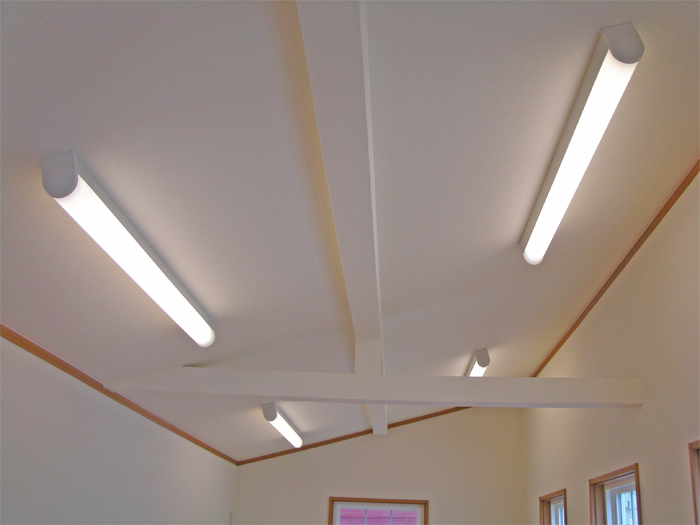

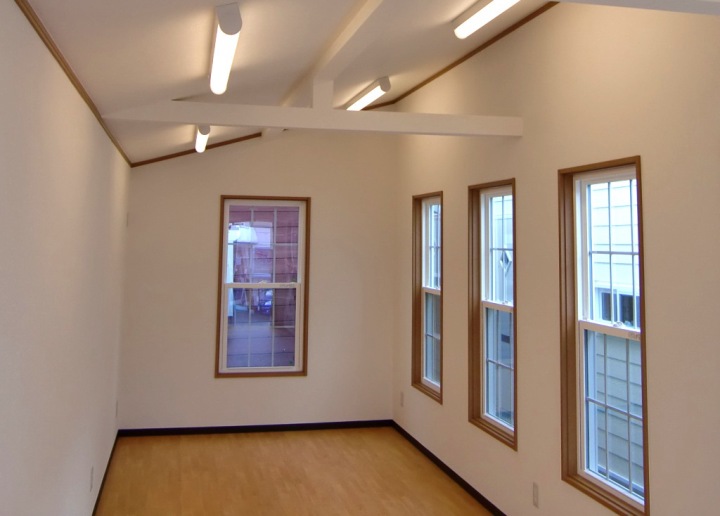

Fluorescent lights
|
Electrical outlets are located every 1.5 meters.
|

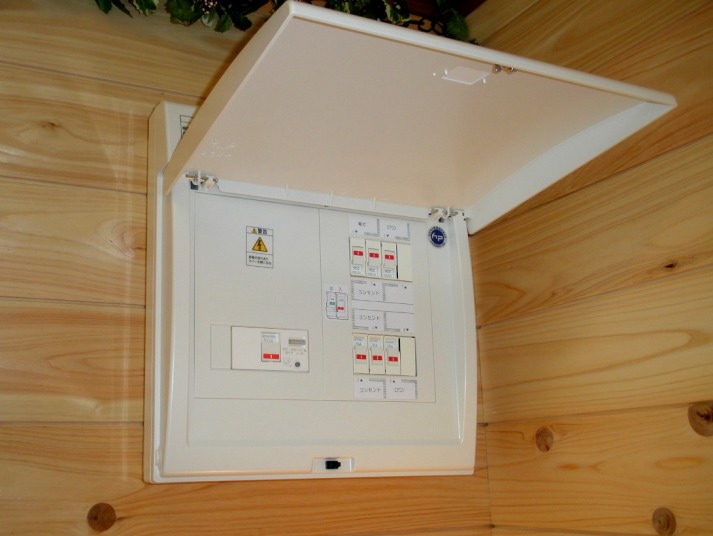

50 amp breaker made in Japan
|
Sturdy structure & specification for cold district
|
||
|
 |
| Option: Two-tone color +80,000 yen (tax-excluded)
|
|
|
|||||||||||

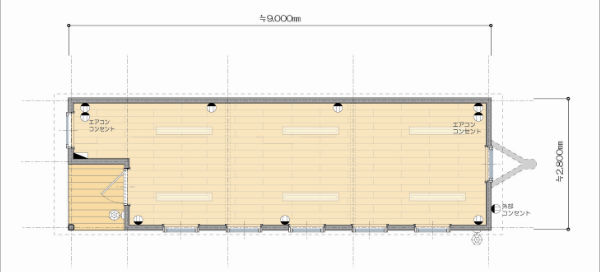

* The following floor plans are 2.8m-wide type. Please refer to the price list below for available sizes.
|

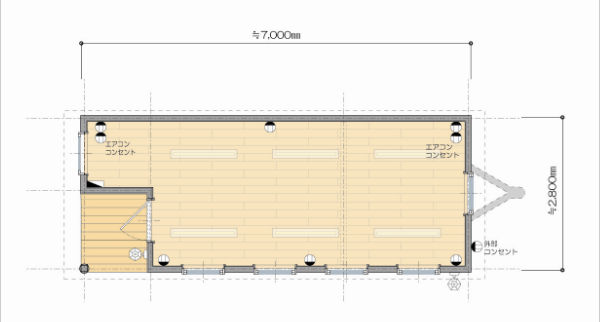

C724 (7 meters)
 |
C924 (9 meters)
 |
C1134 (11 meters)
 |
| width | length | 6m | 7m | 8m | 9m | 10m | 11m | 12m |
| 2.4m | model number | C624 | C724 | C824 | C924 | C1024 | × | × |
| price (tax-excluded) |
6,600,000 | 6,700,000 | 6,800,000 | 6,900,000 | 7,100,000 | × | × | |
| (tax-included) | 7,260,000 | 7,370,000 | 7,480,000 | 7,590,000 | 7,810,000 | × | × | |
| 3.4m | model number | - | - | C834 | C934 | C1034 | C1134 | C1234 |
| price (tax-excluded) |
- | - | 7,100,000 | 7,200,000 | 7,300,000 | 7,600,000 | 7,800,000 | |
| (tax-included) | - | - | 7,810,000 | 7,920,000 | 8,030,000 | 8,360,000 | 8,580,000 |
| "Catalina" Equipment and Specifications [Shop-type] | |||||
|---|---|---|---|---|---|
Standard: Std / Option: Opt |
|||||
| Model | Catalina | ||||
| Model number | C624 | C1032 | C1034 | Last letter G | |
| Body length x width | 6m x 2.4m | 10m x 3.2m | 10m x 3.4m | Hinoki cypress : +900,000 yen |
|
| EXTERIOR | |||||
| [Roof] Galvalume roof | Std | Std | Std | Std | |
| [Outer wall] Vinyl siding | Std | Std | Std | Std | |
| Vinyl sash double-pane windows with Low-E glass and argon gas fill | Std | Std | Std | Std | |
| Terrace door | Std | Std | Std | Std | |
| Wood deck porch & column | Std | Std | Std | Std | |
| Porch lights | Std | Std | Std | Std | |
| Outdoor electrical outlet (1) | Std | Std | Std | Std | |
| INTERIOR, EQUIPMENT | |||||
| [Interior wall finish] White wallpaper | Std | Std | Std | - | |

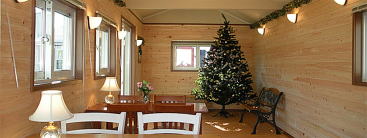

| [Special interior wall] Hinoki cypress | Opt | Opt | Opt | Std | |
| [Floor] Vinyl flooring (C.F. sheet) (standard 6 colors) | Std | Std | Std | - | |
| [Floor] Wooden flooring | Opt | Opt | Opt | Std | |
| Stylish window casings | Std | Std | Std | Std | |
| Fluorescent lights | Std | Std | Std | Std | |
| Electrical outlets | Std | Std | Std | Std | |
| Air-conditioner outlet | Std | Std | Std | Std | |
| 50 amps Breaker | Std | Std | Std | Std | |
| STRUCTURE | |||||
| Frame of channel steel | Std | Std | Std | Std | |
| Axles with rear brakes | Std | Std | Std | Std | |
| 2x4 structure | Std | Std | Std | Std | |
| Waterproof sheet | Std | Std | Std | Std | |
| Truss roof (snow-resistant) | Std | Std | Std | Std | |
| Heat insulating material for cold districts (wall, roof, floor) | Std | Std | Std | Std | |
| DIMENSIONS | |||||
| Overall length (including a hitch and eaves) (cm) | 720 | 1130 | 1130 | - | |
| Overall width (including eaves) (cm) | 249 | 335 | 349 | - | |
